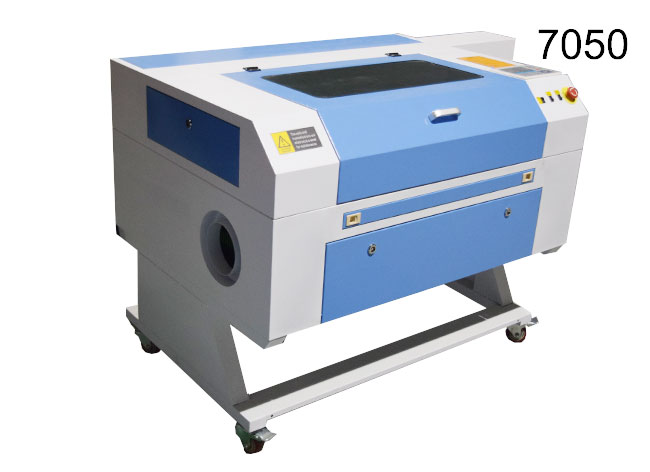

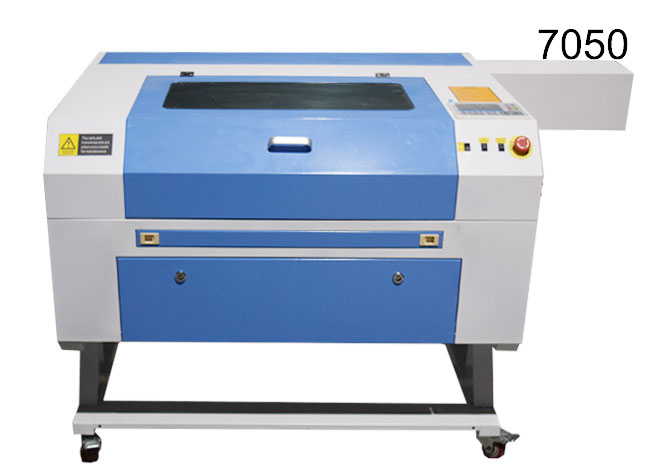

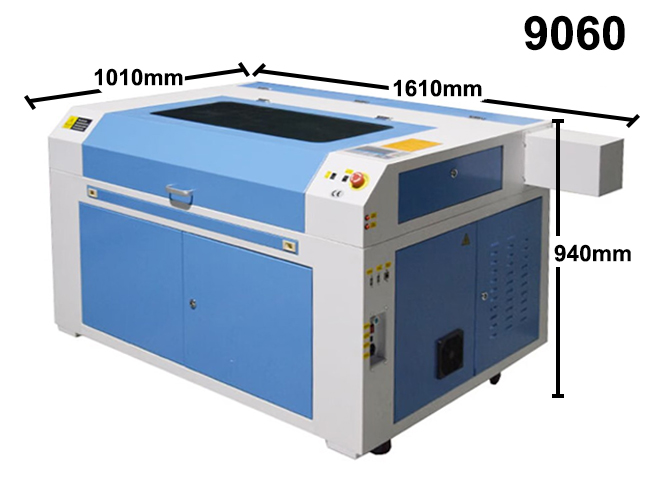

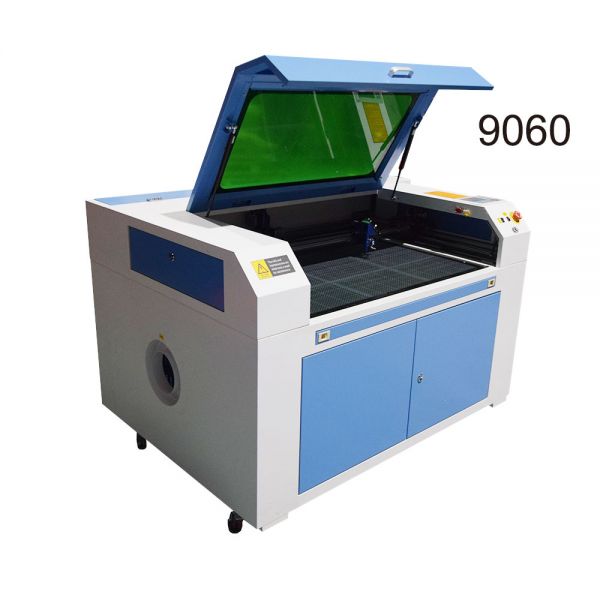

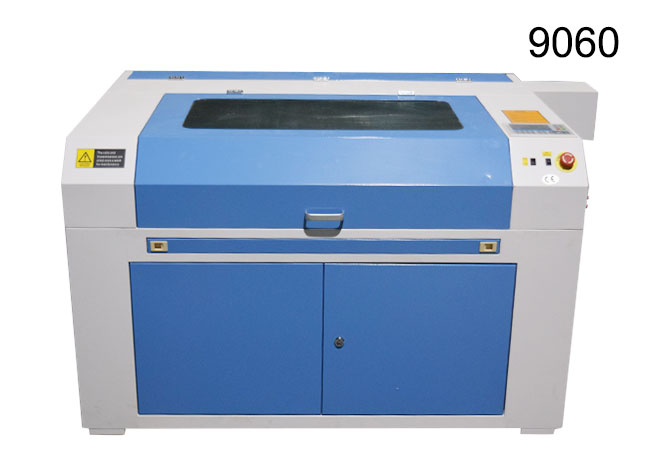

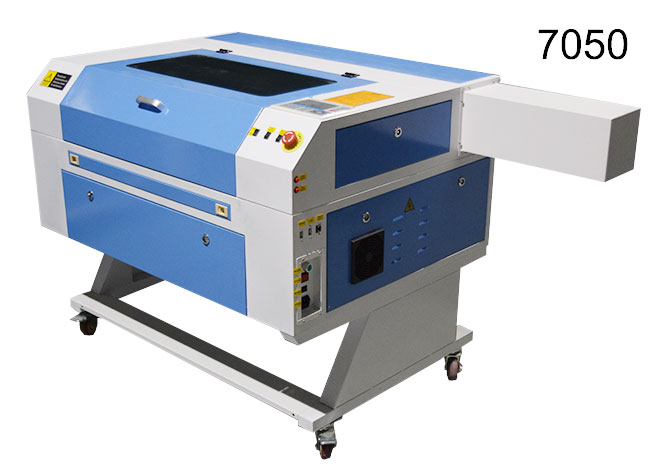

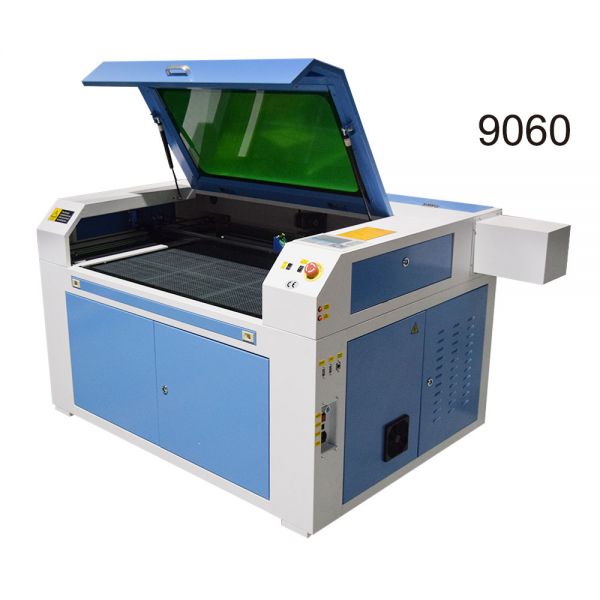

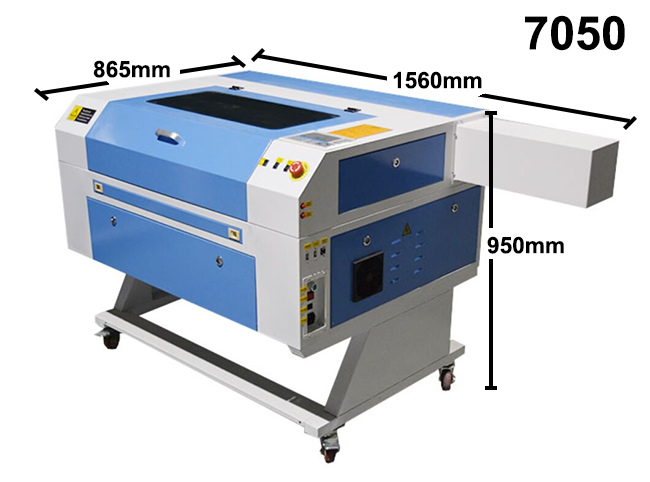

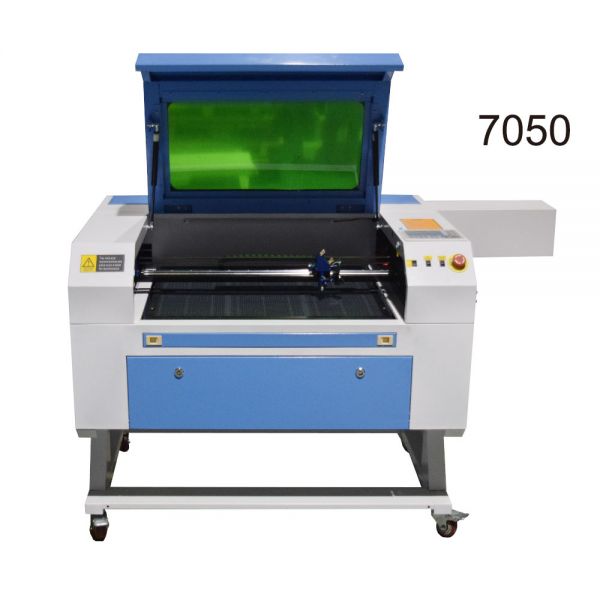

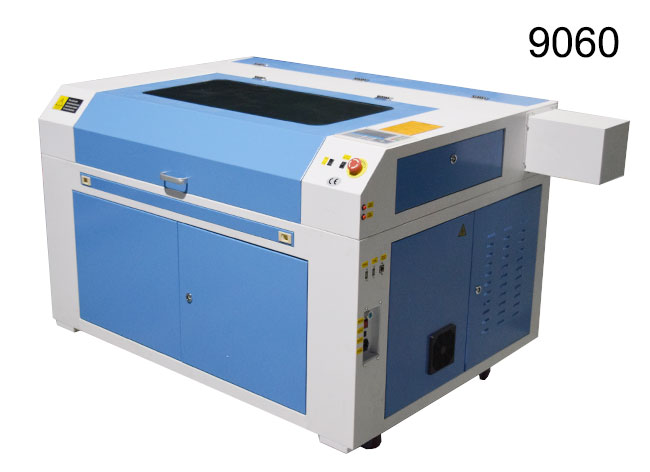

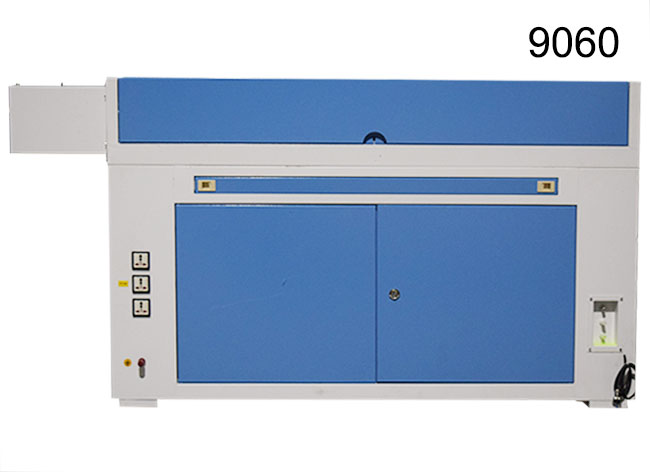

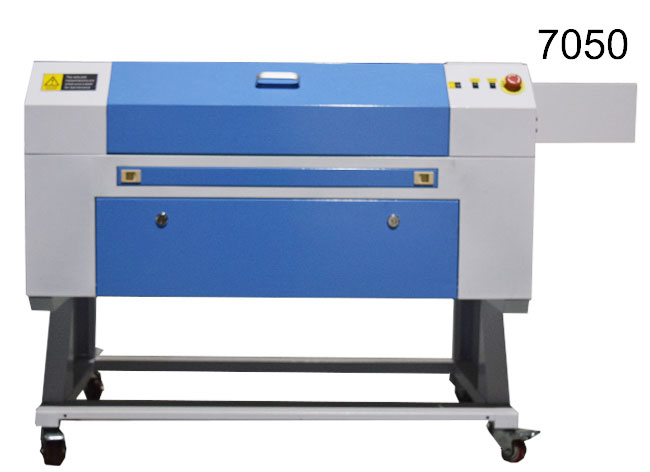

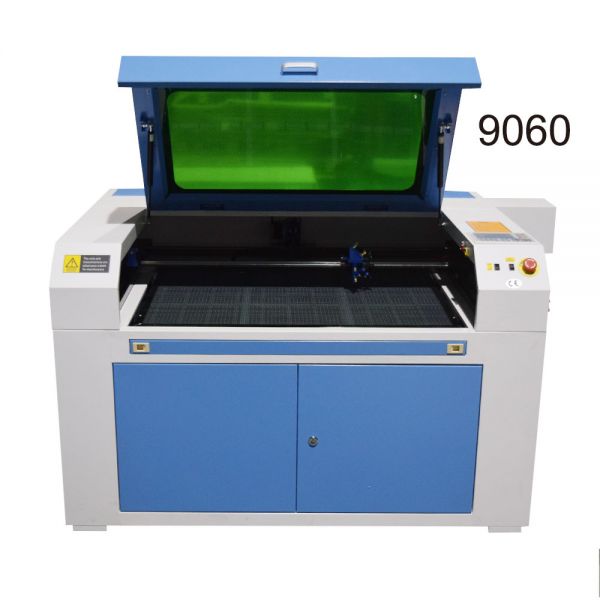

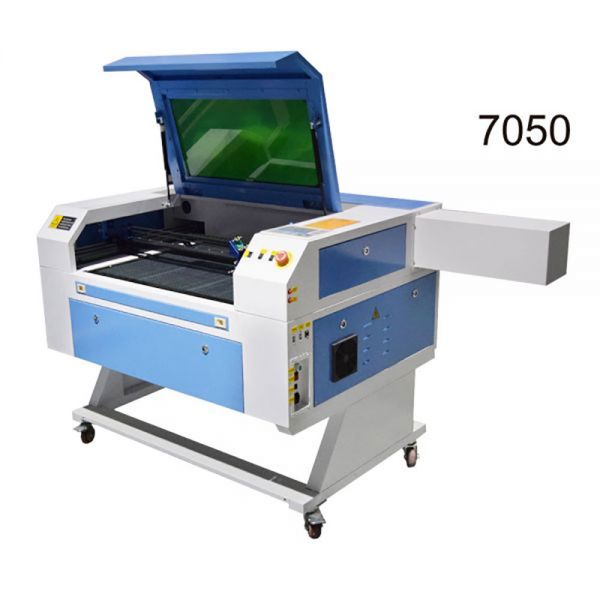

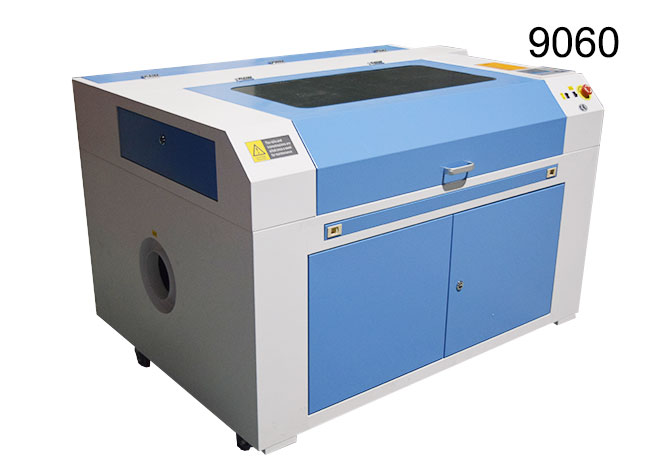

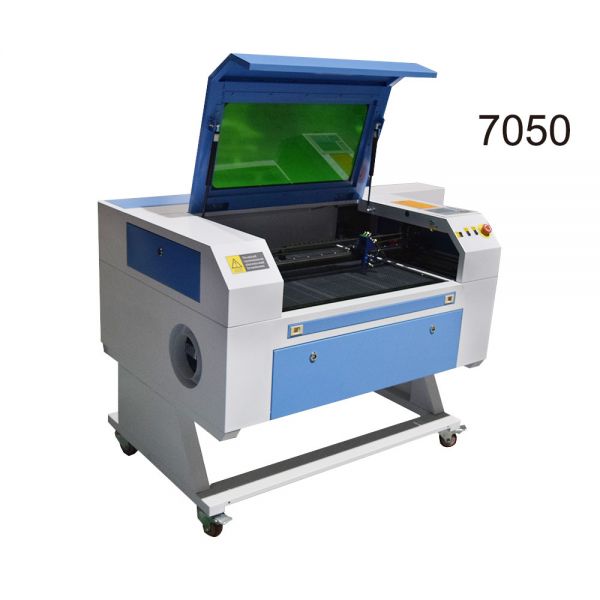

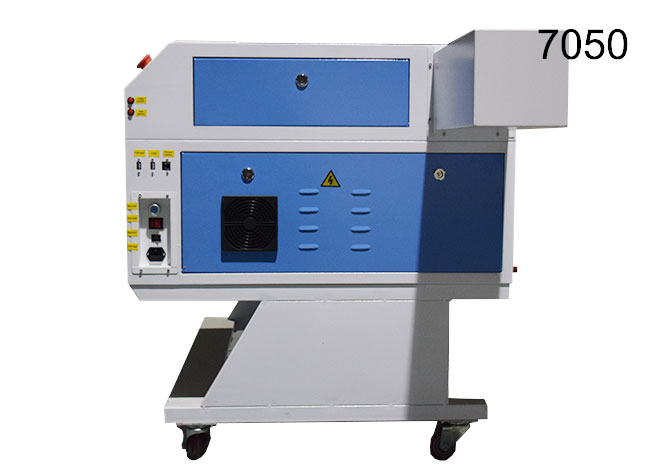

9060/7050 100W CO2 Laser Engraver and Cutter Machine
700 x 500 mm
Unit cost
GTQ 30,086.00
/set
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
GTQ 30,086.00
Options
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Total Cost
GTQ 30,086.00
Amount
/set
1

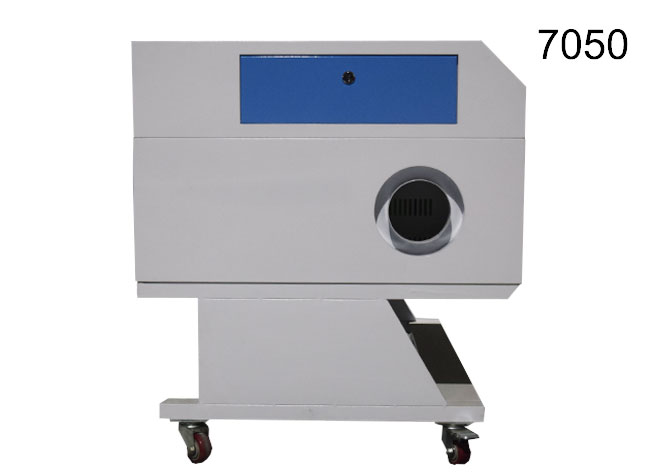

9060/7050 100W CO2 Laser Engraver and Cutter Machine
This Laser Engraver is equipped with 100W CO2 laser tube. It is used to engrave on wood, bamboo, crystal, leather, rubber, marble, ceramics and glass and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST. It features DSP Control System for RDdraw directly, also supports CoreDraw and Auto CAD and other advance software.
This product is widely used in industries including arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.
Features:
1. Quality CNC machined parts for durability Guaranteed
2. Upgraded control board for more accurate currency adjustments
3. Powerful exhausting fan for fumes and smoke extraction
4. USB port to connect the engraver to a computer
5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)
6. FDA certified
Specification:
| Laser Power | 100W |
| Voltage | AC220V ± 10%, 50HZ |
| Gross Power | ≤1300W 12A |
| Laser Type | CO2 Sealed Glass 10.64 um |
| Working Area | 700mm x 500mm/ 900mm x 600mm |
| Z table | Motorized Z (8" vertical adjust) |
| Focus Lens | Dia. 18mm FL2" |
| Driver type | Stepping Motor |
| Max. Engraving Speed | 23-5/8"/s (600 mm/s) |
| Max. Cutting Speed | 3/8”/s (10 mm/s) |
| Engraving Thickness | 0 - 3/8" (0 - 10 mm) depends on material |
| Cutting Thickness | 0 - 3/8" (0 - 10 mm) depends on material |
| Locating Precision | ± 0.01 mm |
| Resolution Ratio | ≤ 1,000 dpi |
| Min. Character Size | 1 mm × 1 mm |
| Min. Character Letter | 2 mm × 2 mm |
| Operating Temperature | 41 ℉ - 122 ℉ (5 ℃- 50 ℃) |
| Laser / PC Connectivity | USB, Ethernet connection |
| OS Compatibility | Windows 10, 8, 7 (64/32 bit) |
| Support Software | LightBURN, CorelDraw, AutoCAD, Photoshop, etc. |
| Control System | RDC6442G controller |
| Graphic Format Supported | Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.) |
| Cooling Type | Circulating Water Cooling and Protection System |
|
|
 |

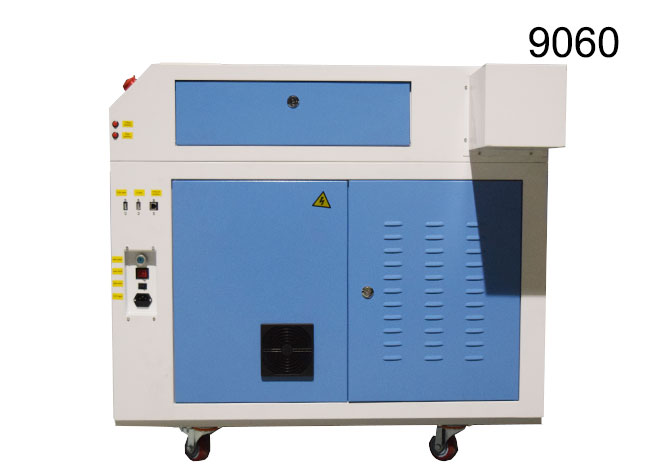

| The overall box type machine has a stable structure, no shaking, and higher cutting accuracy laser head lifting height 45cm |

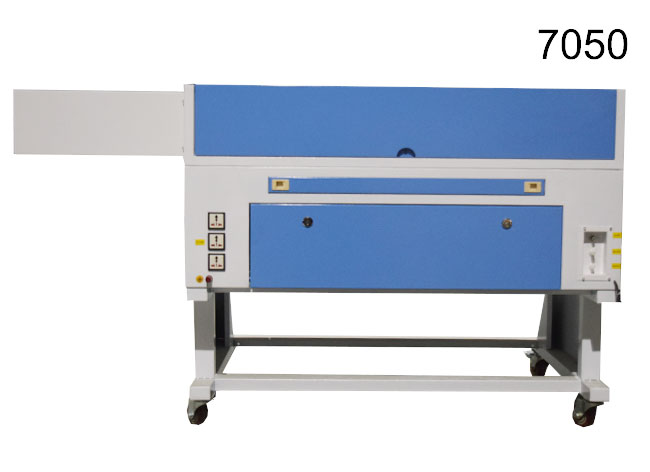

Leg rack, laser head lifting height 22cm |
|
|
 |

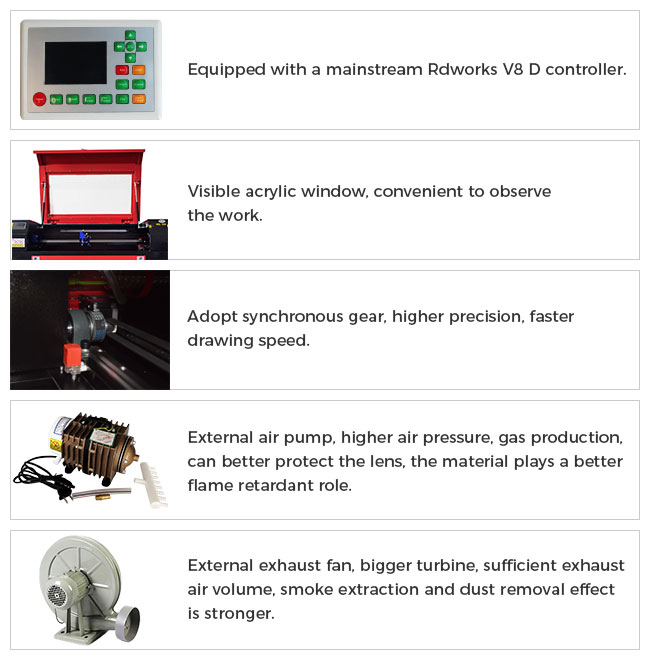

| RuiDa RDC6445G controller The best operating system, stable and efficient Files can be exported directly from computer to the machine software by machine cable, also you can choose to export to an USB flash and then download to machine. Support multi language. With USB or WLAN Communication port. |
Other brands Unstable, does not support USB |
|
|
 |

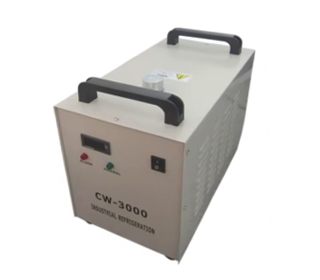

| Water chiller The water circulation cools the laser tube, protects the laser tube from high, temperature during working. It ensures stable laser output. |

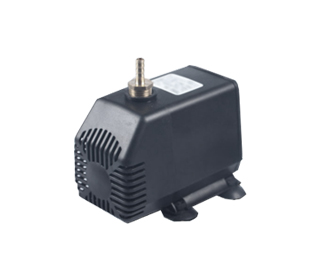

Water pump When the temperature of the laser tube is too high, the cooling effect of the water pump is not good, which can cause damage to the laser tube |
|
|
 |

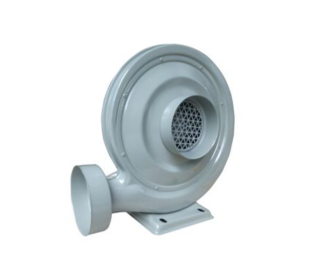

| Exhaust dust extractor Strong wind power,can remove the fumes caused during engraving and cutting. |
Exhaust fan Limited power, poor smoke exhaust effect |
Product details:
CO2 Laser Tube
Classic model upgraded, catalyst coating on Germany discharge tube, working life is up to 6000 hours.

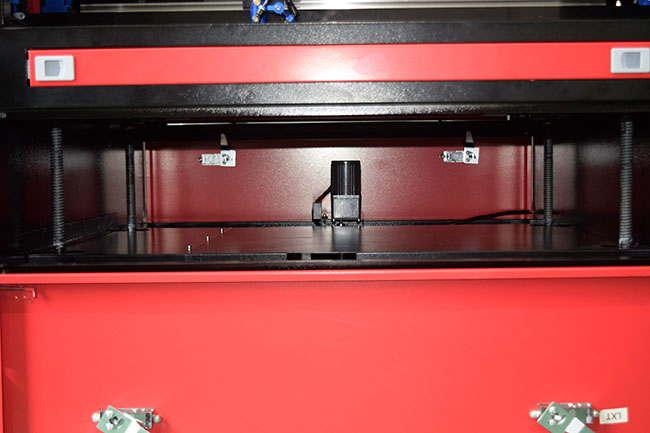

Pass-Through Capability: 4cm (1.57inches) high

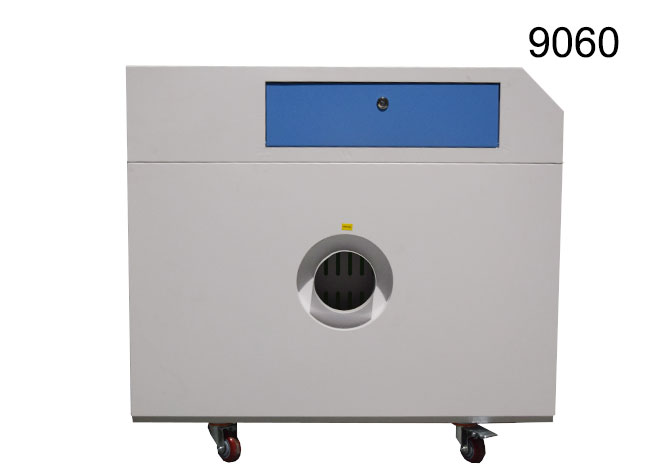

The front door and back panel give the 750 CO2 laser engraving and cutting machine pass-through capability, allowing you to work with uncut sheets, process long work pieces, or use continuous roll material.

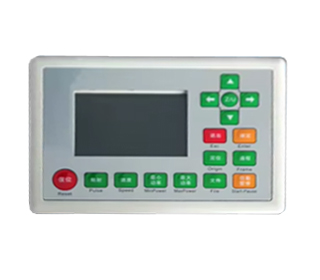

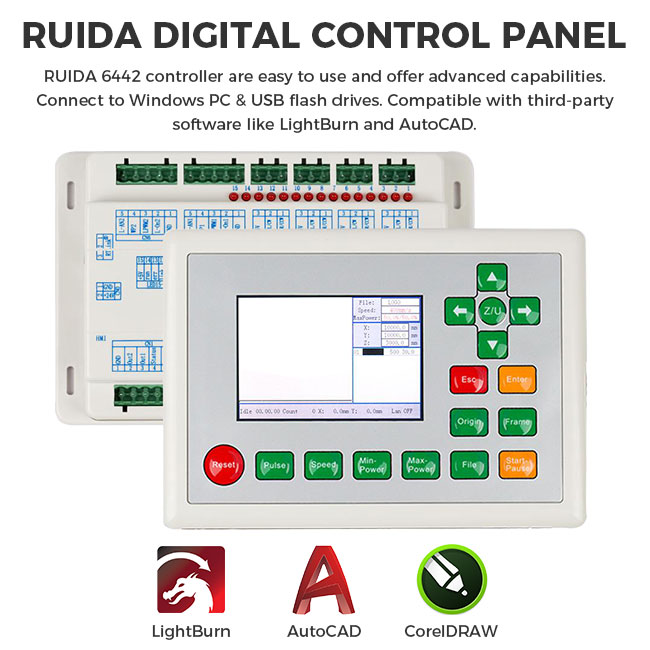

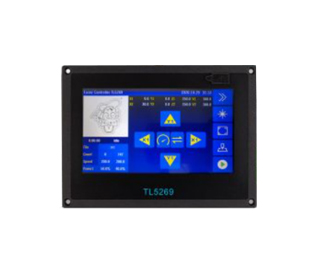

Digital Operation Panel
It features DSP Control System for RDdraw directly, with multi-language (English, French, German, Italian, Spanish, and more languages updating) available, which is more intuitive, simple and more convenient.

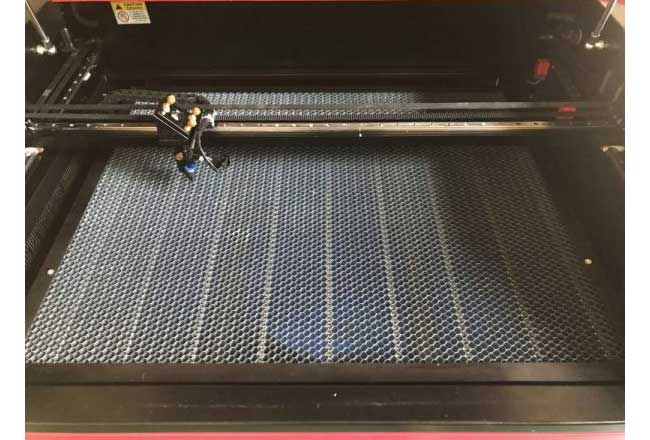

Large Working Area
With large working area of 28"x20" (70x50cm), featuring bending table, which adopts honeycomb structure, with high strength, anti-deformation, sound absorption and heat insulation.
Belts and rails
The machine is of high quality Belts and rails, It is characterized with long service life with high speed, high accuracy and smooth linear motion.
The color of the Laser Head is random, you may receive black or blue.

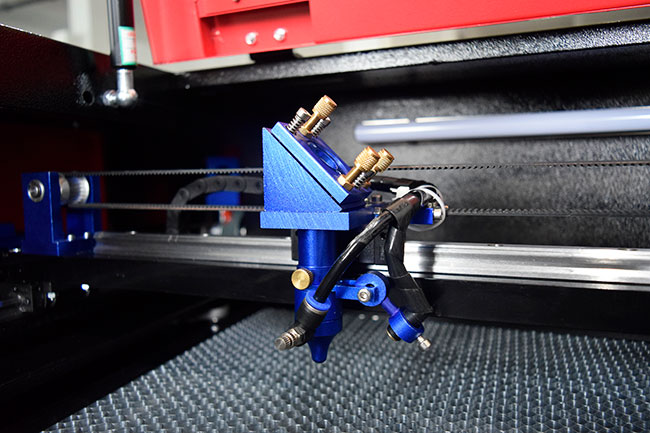

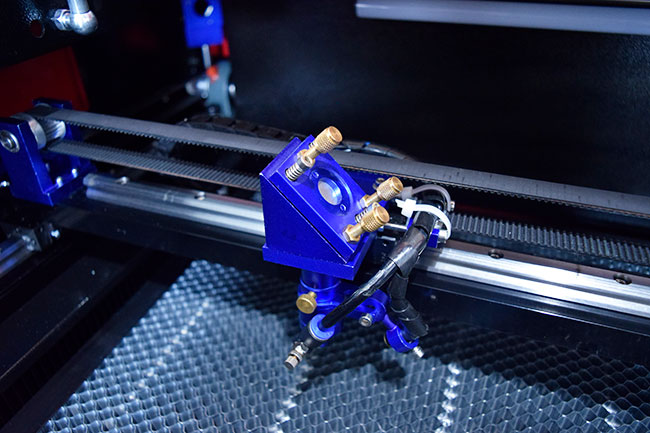

Premium Laser Head
Industrial grade 80W laser head, with high quality, reliable performance and durability, improves the engraving precision and performance.
Using high quality aluminum profile, machine engraving more stable, firm.

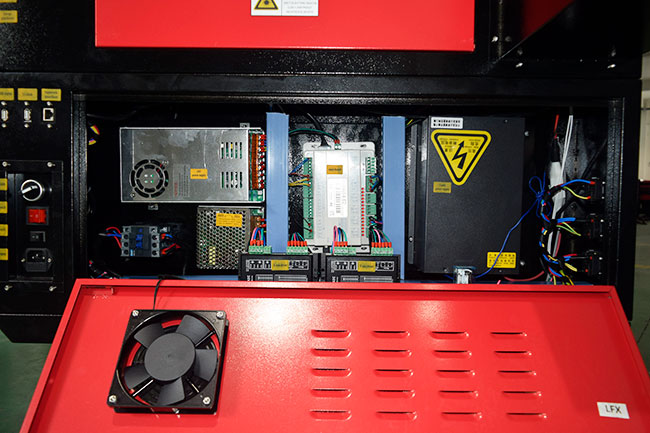

Accessories such as power supply and driver in the chassis are neatly connected and easy to maintain.
The machine can pass through the door two-way and you can carve larger materials.
Well-Designed Details

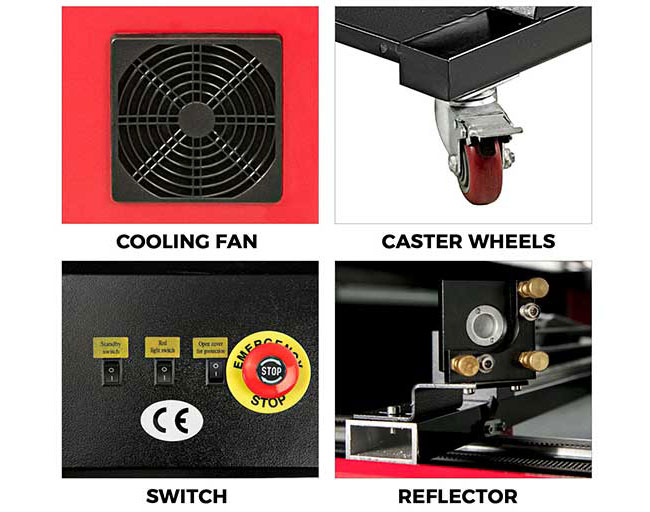

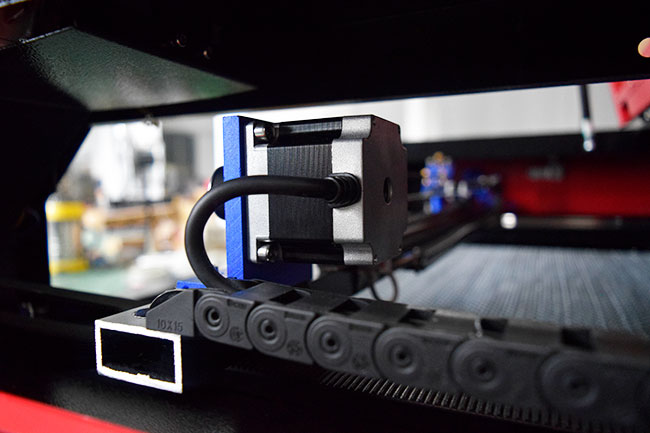

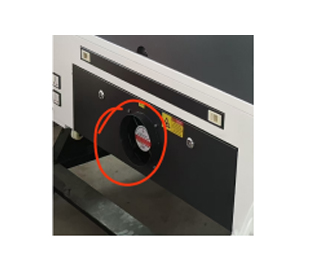

With high precision stepping motor and high-quality reflector for strong performance. Switches and emergency button for better control. The built-in cooling fan reduces temperature of all components. With 4 casters, easy to move.

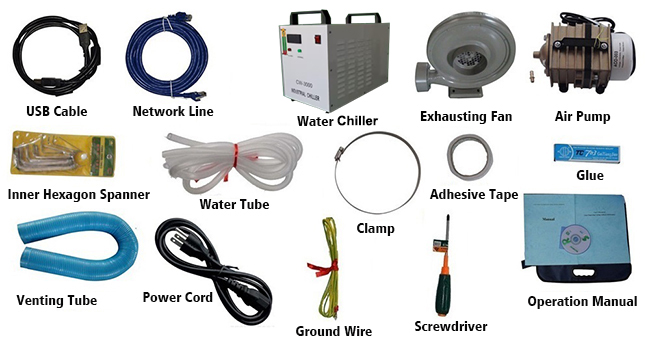

Accessories:
Features and advantages:
Application:
Used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc.
For example: Countertop Sneeze Guard, Mask Storage Box, clocks, plaques, crafts, toys so on.
Sample:
