E40 DIY Professional Diode Laser Engraver and Cutter
Unit cost
GTQ 7,484.00
/unit
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
GTQ 7,484.00
Total Cost
GTQ 7,484.00
Amount
/unit
1
E40 DIY Professional Diode Laser Engraver and Cutter

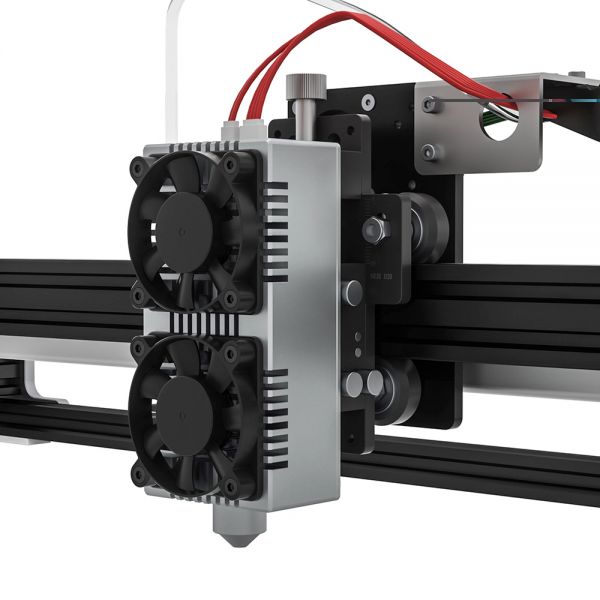

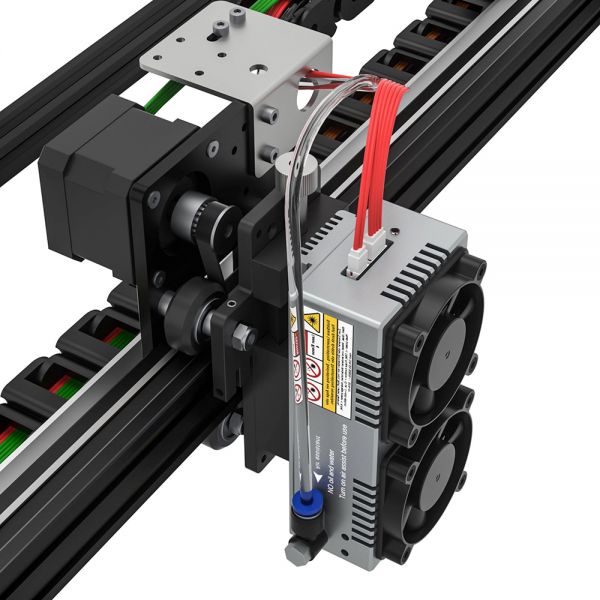

E40 module is suitable for a wide range of materials. Mainly skilled in fine carving and cutting, E40 has a unique performance in grayscale carving ability and cutting details for MDF boards, leather materials, and plywood.
Having very fine carving and cutting expression abilities, for users with higher requirements for precision, such as ceramic carving, leather, MDF cutting within 4mm, etc., with perfect detail presentation.
If you often use these materials and want more detailed carving and cutting, then you can choose E40

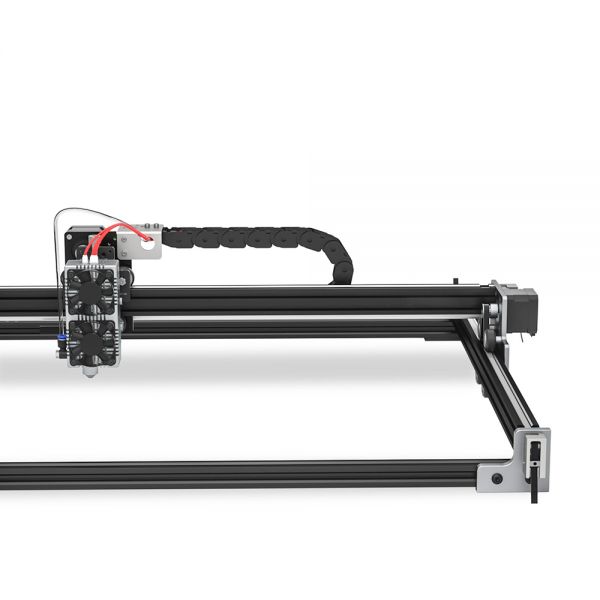

1. General-purpose large-area DIY laser engraving and cutting machine.
2. High-quality alloy materials and precise structural design ensure portability and ease of use.
3. Fully calibrated with precision CNC machines, stable performance and easy maintenance.

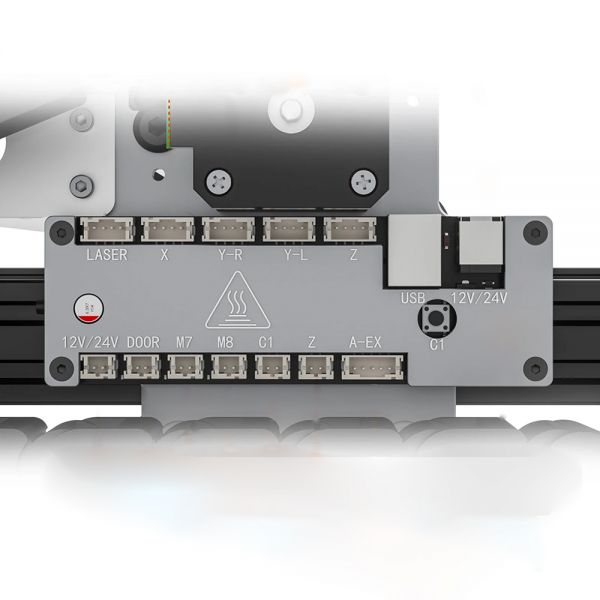

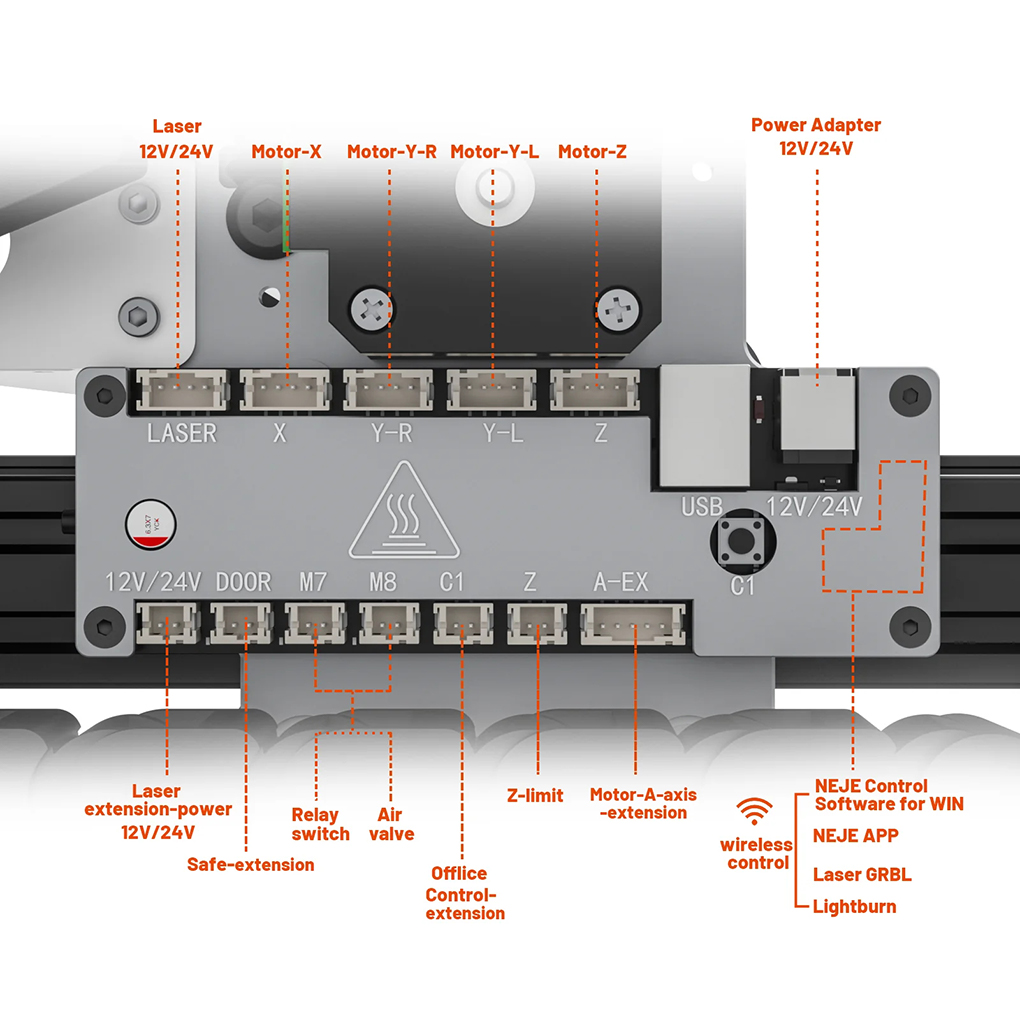

4. The new control system supports native Z-axis and A-axis, and a single computer can control countless devices, supporting commercial production mode settings and lightburn wireless mode.

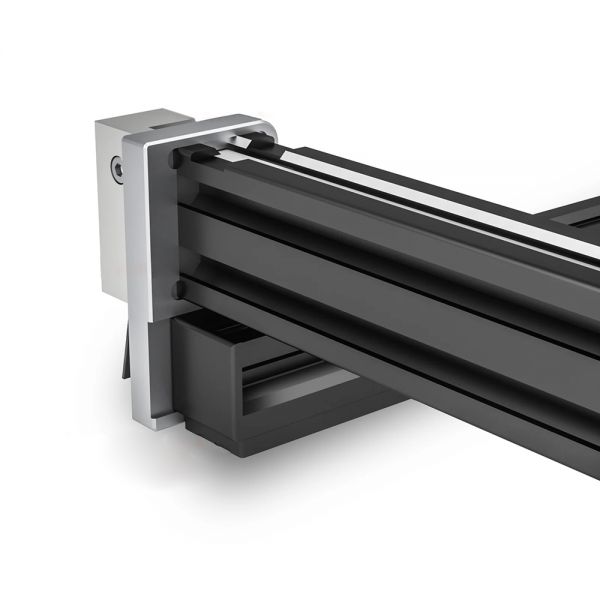

5. The X-axis and Y-axis can be extended to achieve an incredible work area, which is a good helper for entry-level and commercial use.
| Mode | LCM-E40-MAX-V2 |
| Working area( X - Y) | 790mm x 470mm (31" x 18.5") |
| Power Input | AC 100-240V (optional) |
| Light source | Original diode X2 |
| Laser Wavelength | 450nm |
| Optical Power Output | 10W |
| Laser | 40W |
| Focal spot size | 0.03 x 0.04mm fixed focus |
| Continuous Power | 10-11W |
| Pulse power | 12W |
| Working Frequency | <30khz |
| Working Voltage | DC 12V |
| Working Current | DC 5A |
| Dot Pitch | 0.075mm, 338dpi |
| Pixel | 6133 x 10800 px |
| Drive accuracy | 0.01mm |
| System | Win 7 / Win 8 / Win 10, Android, iOS, ipadOS, macOS, HarmonyOS. |
| File format supports | SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc. |
| Compatible Software | NEJE, Lightburn, LaserGRBL |
| Max cutting thickness | 10mm |
| Recommended cutting thickness | <5mm |
| Stainless Steel Cutting Thickness | 0.05 mm 300 mm/min |
| Temperature control | 45℃ |
| Life Time | 20000 Hours |
