YT1812 600W Laser Flat Mold Cutting Machine
Applications:
SIT-YT1812-600W laser tube cutting machine is mainly for cutting various die board in color print industry, electronic products, and other light industry, sheet metal industry such as carbon steel, sheet, stainless steel sheet, aluminum alloy sheet; acrylic material, plastic material, and another non-metal sheet.
With stable body structure design, flexible working function, professional CNC control system, the cutting efficiency and quality has more advantages over traditional cutting method. This machine satisfies the die making factory, carton factory and other package& printing factory who need to make flat dies.
Machine Consist:
| Product name | Picture |
| 600W laser tube |  |
| CNC Control system |  |
| 30mm Ball screw TAIWAN HIWIN |
 |
| Automatic refueling system |  |
| Linear guide TAIWAN HIWIN |
 |
| Laser head head with fully enclosed design anti-dust, easy adjustable up and down function to control focal length |
 |
| Auto Clamp |  |
| Water chiller system JZ-6200 L0.7m*W0.6m*H1m Weight: 85kgs. |
 |
Technical Parameters:
| Model No. | SIT-YT1812-600W | |
| Power | 600W | |
| The table style | Gantry construction with fixed cutting head | |
| Laser source | laser tube | |
| X-axis travel-length | 1200mm | |
| Y-axis travel-length | 1800mm | |
| Cutting speed | 18 mm die board 40-50m/H | 2mm stainless steel 60m/H |
| Re-Positioning Precision | ≤0.02mm | |
| Cutting width kerf | 0.45mm, 0.71mm, 1.05mm, 1.07mm | |
| Transmission system | Ball screw & Linear guide (TAIWAN) | |
| Driving system | Japanese technology | |
| Optical system | US program | |
| Overall dimensions (L*W*H) | 4600*2300*1800mm | |
| Gross Weight | 2000kg | |
| Laser cutting thickness | 1-25mm（plywood, acrylic board, rubber, pvc board, leather, MDF board) | |
| Metal cutting thickness | Carbon steel/Iron steel: 4mm Stainless steel :2 mm | |
Consumption:
| Total rated Power | Electricity consumption | 400W laser tube |
| 5KW | 5degree/H | 3000 r/set |
Function & Feartures:
- Gantry structure with fixed cutting head, stable working, small floor space required for machine.
- Adopt domestic most advanced 600W CO2 sealing type water-cooled laser tube, combined with good precision of CNC control mechanical systems. It can reach cutting die manufacturing precision and at the same time greatly reduce the production cost. Suitable for wooden cutting die and precision electronic cutting die production.
- Using fixed optical path structure, to avoid the high-power cutting size problem because of the optical path deviation.
- Unique smoke exhausts design; create a good working environment for you. Using the most advanced laser tube in China and no need to add any auxiliary gas when cutting, laser cutting die consumption is extremely low. Only 220v external power source is needed and making low cost. There is no need to wait long time for start and running the machine.
- Can one-time cutting 15mm-23mm plywood, PVC board, organic glass. The cutting line width can be 0.45mm, 0.71mm, 1.05mm.
- Simple and clear-cutting line adjustment technology. Cutting software can be compatible with AutoCAD. CorelDraw, Adobe Photoshop. Editing path is very easy and convenient.
Laser Tube Characters:
- All the optical lens imported from USA II VI Inc. making laser output power higher and more stable pattern, all the optical lens assembly are in the 100% clean room to complete, is the only manufacturer with clean assembly room.
- Entirely through ISO9002 quality system certification of the manufacturers, is the only one to do CO2 laser manufacturers through this certification.

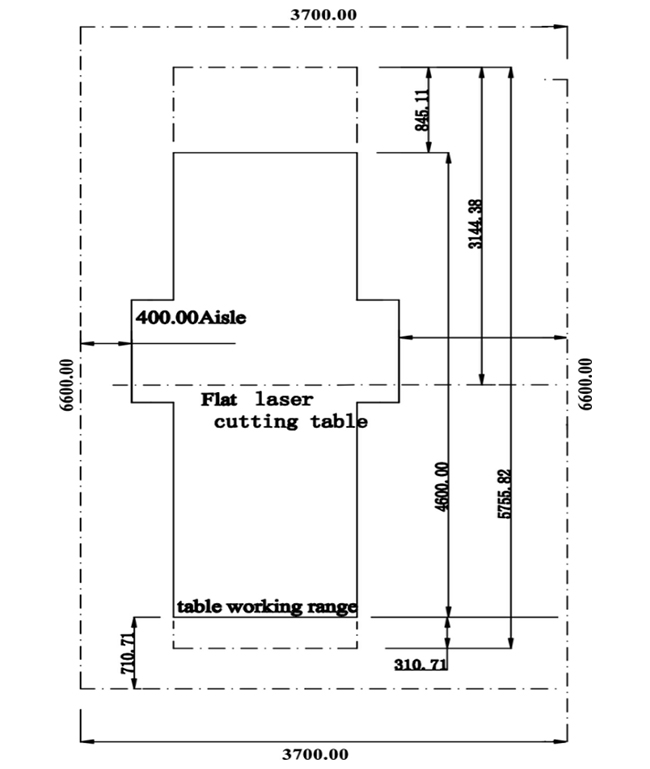

Machine required space:
Machine Environment Requirements:
- Total required rated power: 5KVA.
- Single phase220V, 50～60HZ
- Machine environmental requirements: Temperature Requirements: 5～30°C; Humidity: ≤ 70%.
- In accordance with the drawing’s foundation provided
- Specific cable length is determined depending on the user site
- AR acetone or high purity 95％alcohol each minimum 50 ML
- Air compressor: 5.5HP
- Drying machine
- Packing: FCL 20GP
Certificate & Accuracy Report:
Moving accuracy testing by laser meter, Tolerance is 0.02mm
Cutting Sample & Application Area:
