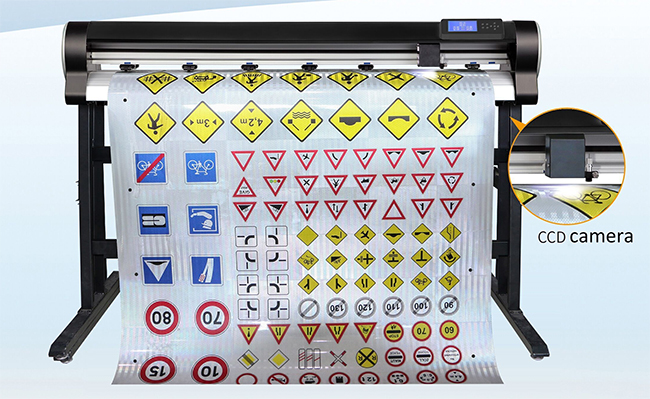

1.5m CCD Camera Vinyl Cutter with Full Auto Contour Cut Function

Name: 1.5m CCD Camera Vinyl Cutter with Full Auto Contour Cut Function
SKU: SIT-HS-CY1500
Price: 9487.46 GTQ
Availability: InStock

Precio unitario

GTQ 9487,46

/set

Descuentos por volumen

Cantidad

Descuento

Precio por unidad

GTQ 9487,46

Costo total

GTQ 9487,46

Cantidad

/set

Detalles del producto

Descripción

1.5m CCD Camera Vinyl Cutter with Full Auto Contour Cut Function

Feature:

1.Camera Scan,multi-marks,automatic contour cut.

2.Optional 1000g high force to cut strong 3M reflective film.Normal force to cut different materials. Such as sticker, car sticker, war sticker, reflective film and some others.

3.Max cutting speed 800 mm/s.

4.High precision steel roller: guaranteed 8 meters without deviation of paper feeding.MYCUT all machine adopt this way, to make all our machines with high precision.

5.Support cut 1.5mm small letters without distortion.

6.High performance 32-bit processor with ARM Cortex-M3.

Details:

Specification:

Model	CY1500
Media Way	Floor stand
Main Board	High-performance & intelligentARM 32 CPU; 256MB memory
Driver	High speed stepping motor, micro-step driver
Maximum Paper Feed Width	1600mm
Maximum Cutting Width	1500mm
Maximum Cutting Speed	800mm/s (1000mm/s servo motor optional)
Software	Signmaster
Cutting Force	0-600g(digital adjustment,1200g high force optional)
Mechanical Precision	0.01mm
Repeatable Precision	<±0.1mm
Plotter Instruction	DM-PL/HP-GLAutomatic Identification
Interfaces	USB port, Serial port, U-disc port
Power Supply	AC110V /220V±10%, 50Hz/60Hz
Laser point Positioning	Camera scan; Automatical Registration Marks system, Segment Montour Cutting
Noise at Work	≤50 DB
External Dimension	1900320390mm
Shipping Weight	50kg

Application industry:

Certification:
