1.8m Digital Printing Coating and Hot Air Circulation Machine
With the padder putting the mixer and the auxiliary evenly on the coth, Digital printing coating machine makes the clothsmooth for printing. The auxiliary helps the dye react It can also put the softener on the cloth to fix it and dry the doth.
Application and features:- It drives independently, tension free, suitable for all kinds of cloth to be coated.
- The enclosed drying chamber, the heat can be recyclable to save cost.
- The air duct drying, the heat drying is even to avoid the cloth become yellow.
- The horizontal rail, the air duct up and down can both send wind to the cloth.
- Heated by the heat exchanger or the electricity can both be available for your choice.
- The latitude can be put in order manually.The feeding box has 2 roller more feeding.
- The edge can be cut when outputting.
- The function of putting the cloth out in squares or rectangles can be optional.
Specification:
| Linearfadric capacity |
5m |
| Width of cloth |
1800mm |
| Dwelltime |
2-20min |
| Low steaming temperature |
100-120°C |
| High steamingtemperature |
150-200°C |
| Consumptionof steam |
25kg/h |
| Power |
20kw |

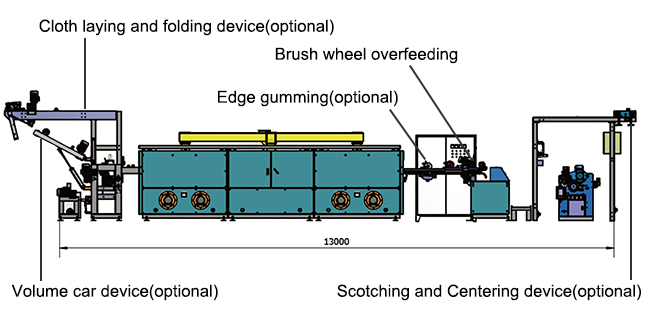

2 rubber roller car+3 section oasthouse+ rolling carOthers: horizontal rail. The machine head with manual skew straightener.
Output with cutting device.
Down over feeding+up overfeeding+left and night brush overfeeding.
The oasthouse use electricity to heat or heat exchanger(only choose one).
The gross power when using steam to heat:15kw.
Steam consumption; 200kg/h.
The gross power when using electricity to heat:75kw.
The maximum speed 15meters/minute(3 section oasthouse).

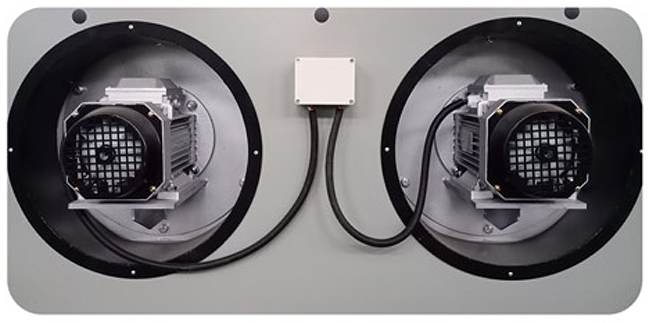

DOUBLE CIRCULATION FAN IN THE OASTHOUSE
Strong winds make rapid temperature cycling, adjustable wind inverter is widely used in fabrics with various thickness.

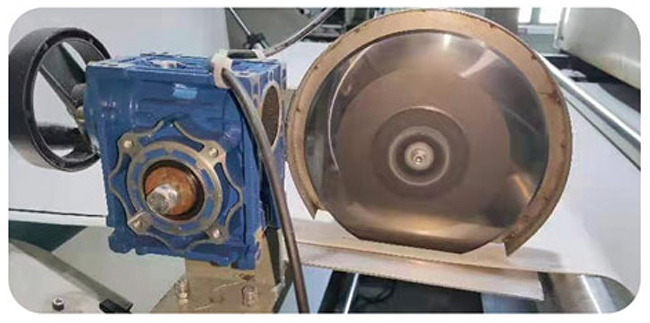

Edge cutting device
Effectively remove selvage curling feather and other issues.

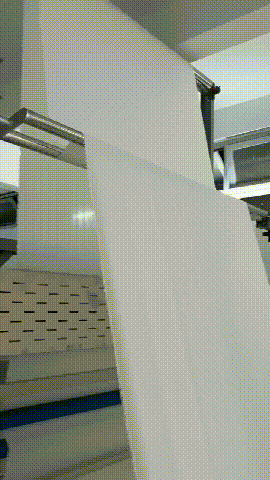

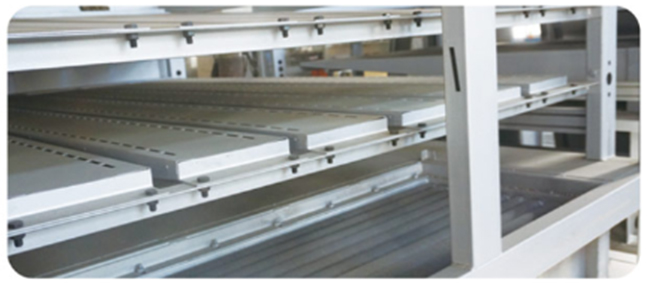

Drying by up and down wind tunnel
Traditional heating is heated by the infrared lamp power, the disadvantage is that in some part the heat is over high and the temperature is uneven(because of the uneven temperature, some parts become yellow and some parts are not dry), the box is not sealed and it causes excessive calorie consumption.
The machine adopts sealed duct drying. heated by steam radiator. the sealed box structure ensures the low waste heat to reduce. the cost. so that the cabinet temperature is more even and it has better resolved the problem caused by infrared lamp leading to partial fabrics become yellow and partial not dried, what's more,there can be a short stay in the operation.

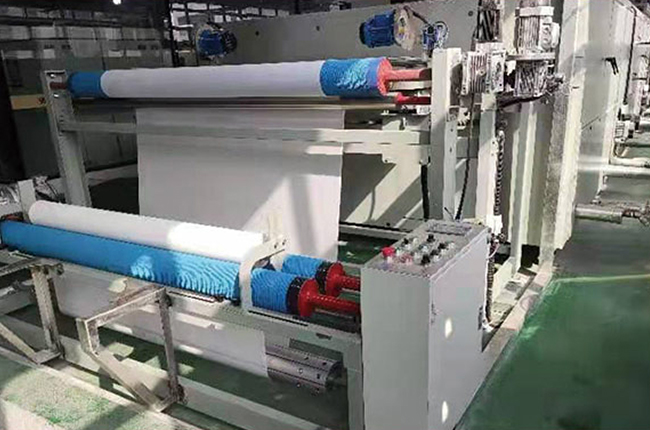

THE CAR WITH A MANUAL WEFT STRAIGHTENER AND TWO RUBBER ROLLERS OVERFEEDING
Apply to skew arc caused by the different tension (manually adjustable to increase).

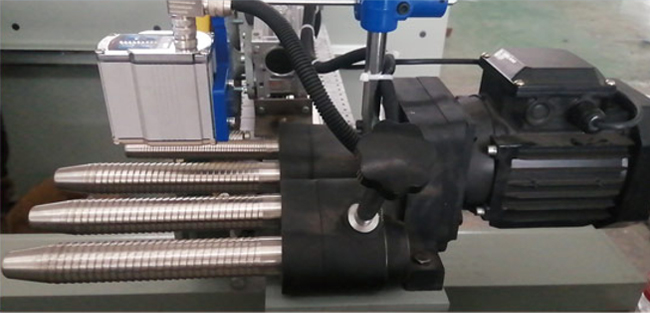

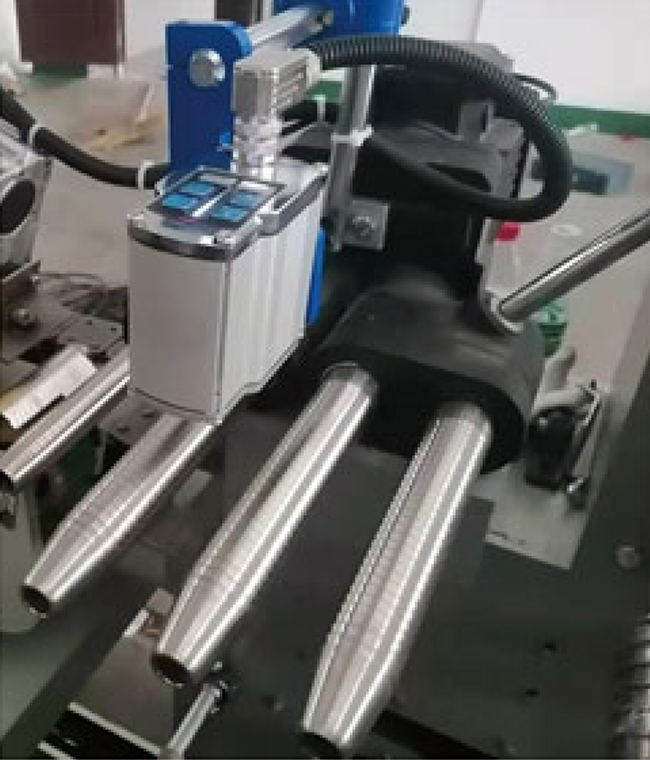

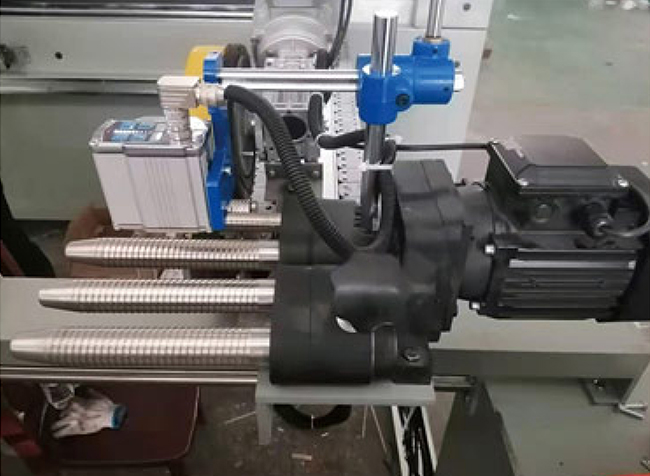

SELVAGE CURLING POKE DEVICE
Unwinding curling researched and developed by ourselves independently solved the problem caused by wrinkled fabrics shrink. Featuring unwinding fabrics without damaging fabrics negative positive slurry.

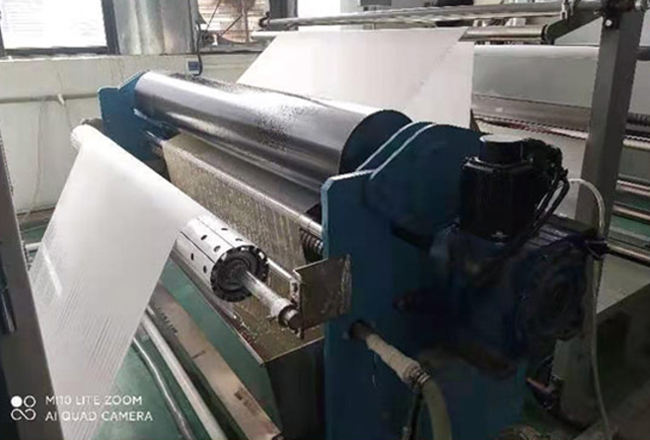

MANGLE
Mangle slurry tank has a single- sided and double-sided coating function, the tank has automatic slurry adding system.

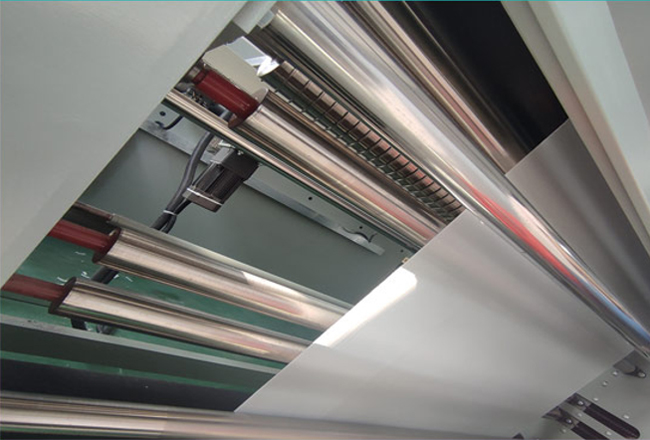

THE DRYING CYLINDER OF CLOTH OUTPUT
A cloth drying cylinder speed can be controlled independently to solve weft fabric tension caused by arc. Steam accelerated the drying fabric to enhance productivity.

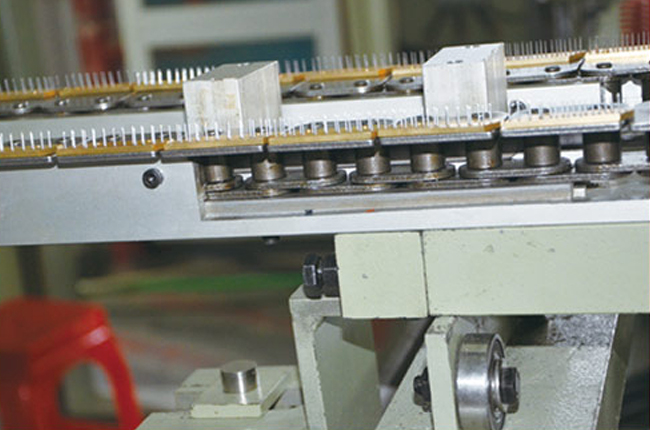

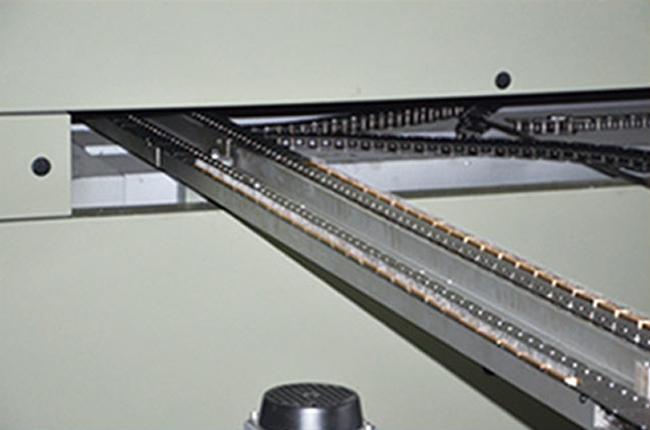

HORIZONTAL RAIL
The level chain structure reduces the mechanical wear. Increasing the life of the machine.

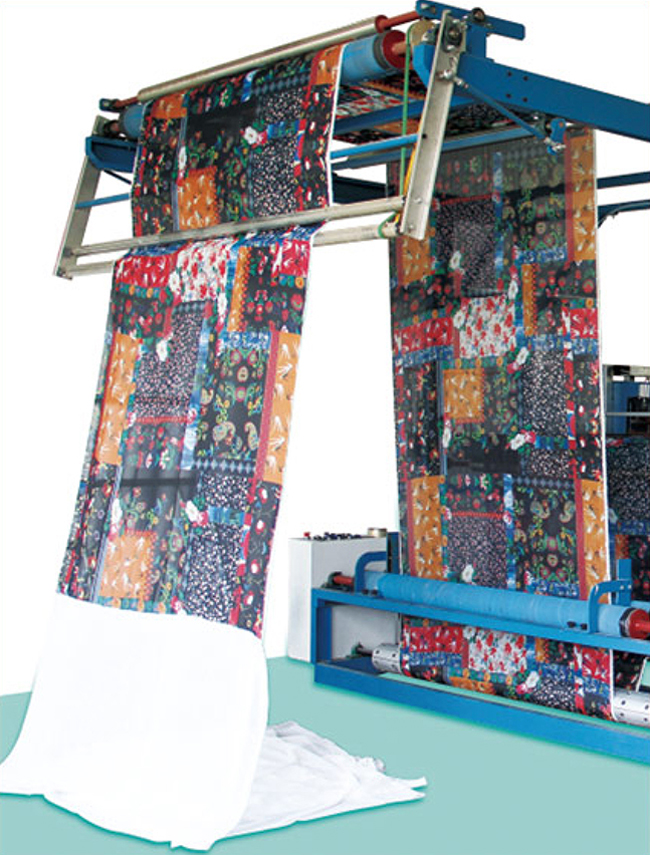

The cloth output you can choose the cloth laying and folding rack and A type rack roll.

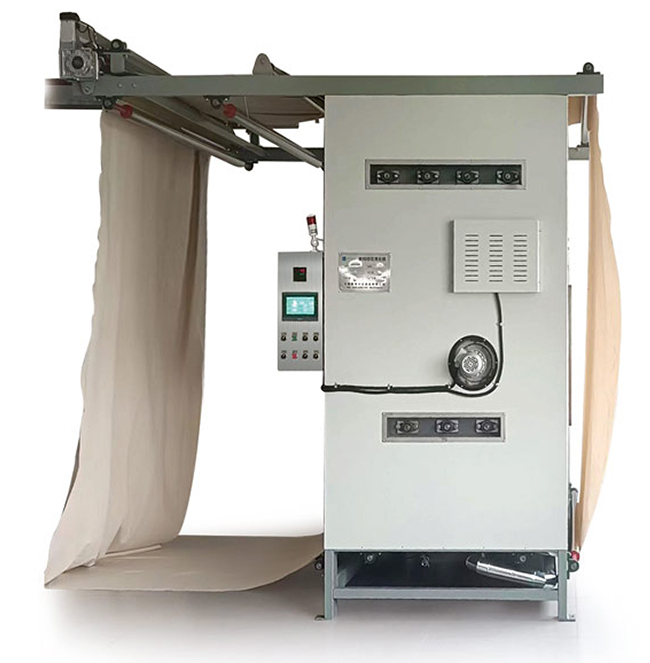

High and low temperature are available, the high temperatureto 200 °C

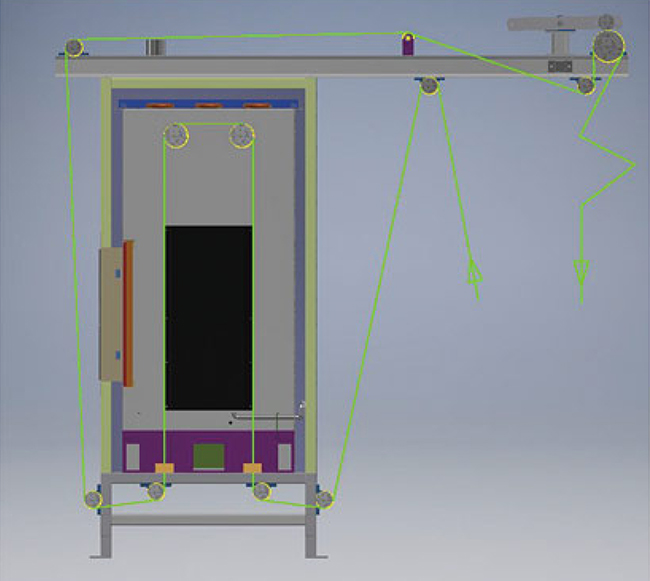

Under progress, under the clothElectric heating, do not need oil boiler. This steamer is suitable for smallsample, the sample and small batch of continuous steaming, To do high temperature low temperature also can doCirculation of air duct, hot air three-dimensional circulation, temperature more even.
