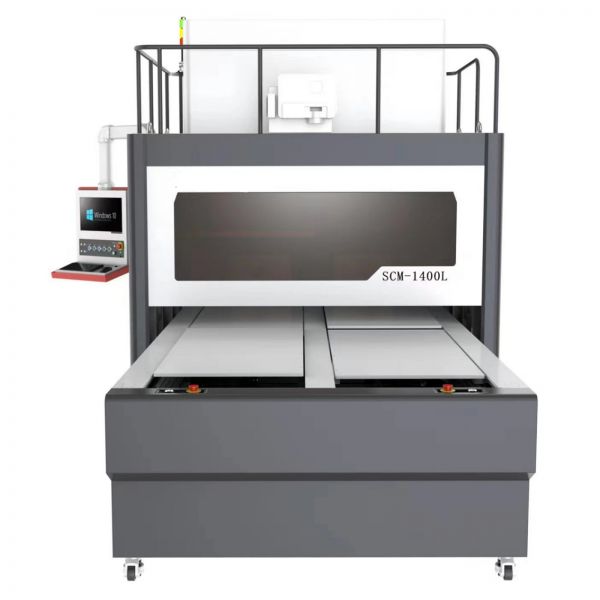

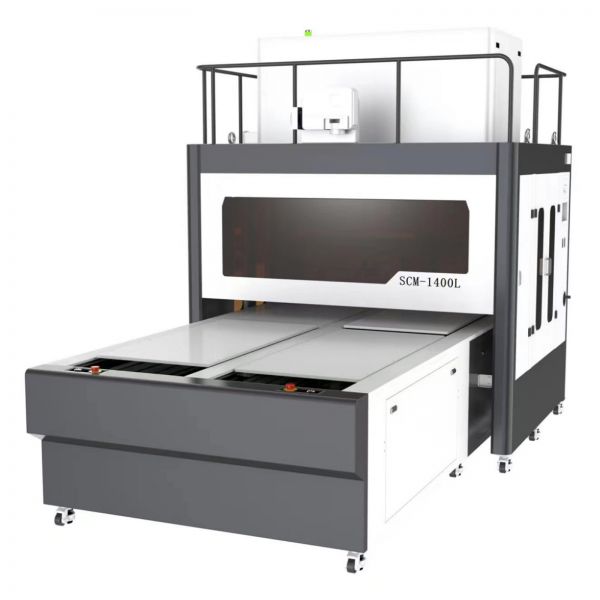

2-Station Laser Marking Machine for Jeans with High-Speed Galvo Scanner
700W
Precio unitario
GTQ 1.372.597,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
GTQ 1.372.597,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
GTQ 1.372.597,00
Cantidad
/set
1
2-Station Laser Marking Machine for Jeans with High-Speed Galvo Scanner

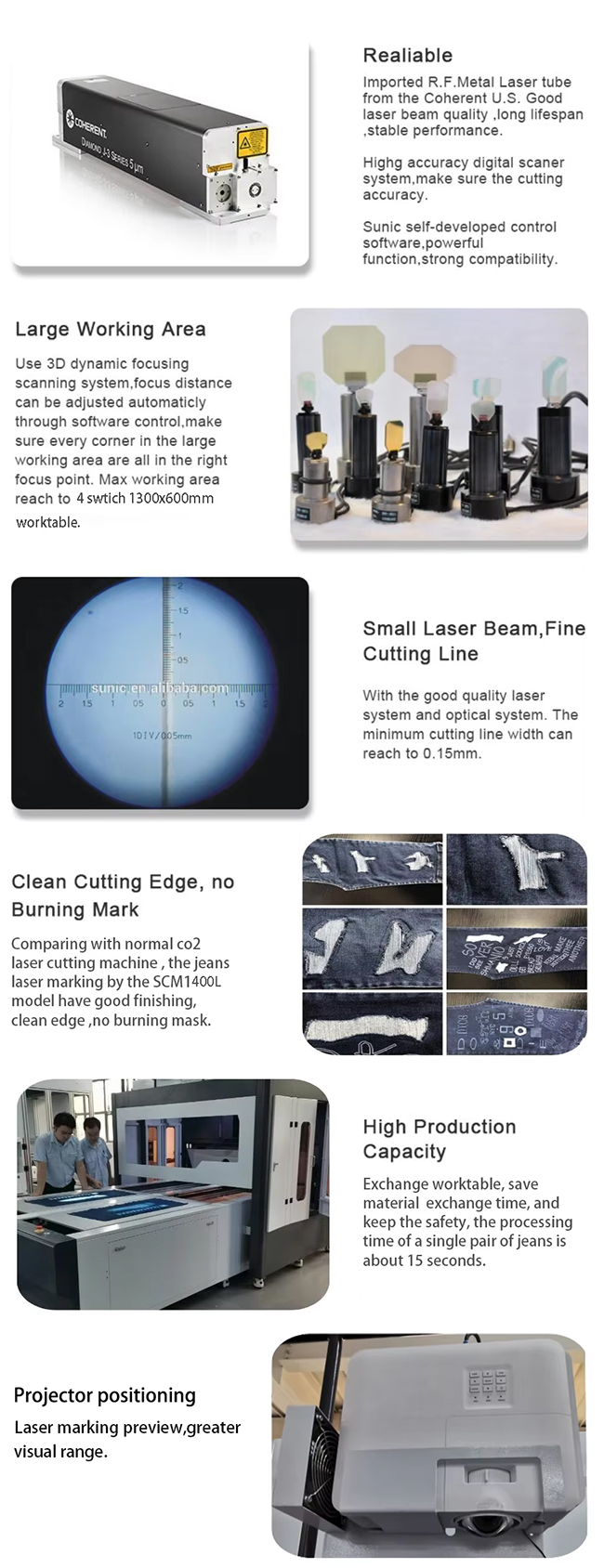

Features:
1.This machine adopts original imported 350W metal RF laser tube, excellent laser spot, stable laser generation and lifetime of more than 20000hrs.
2. 4 independent exchange sliding worktable, increase the production speed, keep the operator’s safety, and give more space to operator change the raw materials.
3.Equipment with projector positioning system, easy for operator to load the jeans in right position.
4. Fully enclosed laser optical system,no adjustment or maintenance needed,can be used directly after installation.
5.3D dynamic galvo control system and automatic up&down Z axis ensure the best processing results.
6. Equipped exhaust fans ensure good exhaust suction effects and environment friendly processing.
7. Comprehensive software support for capturing and creating a variety of labels, as well as non-contact processing.
8. High precision and speed performance with jeans washing working, 20% higher efficiency than the similar models in the market.
Specification:
| Model | SCM1400L |
| Max working Area | 1300*600mm*4 |
| Laser power | 350W/400W/700W |
| Power Consumption | ≤ 5-7kWh |
| Life Span | Over 20000 Hours |
| Marking Speed | ≤10000mm/s |
| Worktable | MDF/Strip/Honeycomb Worktable |
| Laser Source | US Coherent RF Metal Laser Source |
| Laser Wavelength | 10.64μm |
| Laser Frequency | 20kHz~200kHz |
| Focusing method | 3D Dynamic Focusing System |
| Positioning | Projector Positioning |
| Repetition Precision | 0.01mm |
| System Support | Windows |
| Output Compatibility | Auto CAD, Photoshop, CorelDRAW etc |
| File Formats | PLT, DXP, BMP, JPG, AI etc |
| Software Character | Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting |
| Power Supply | 220V/50Hz |
| Cooling Way | Circulation of Water Cooling |
