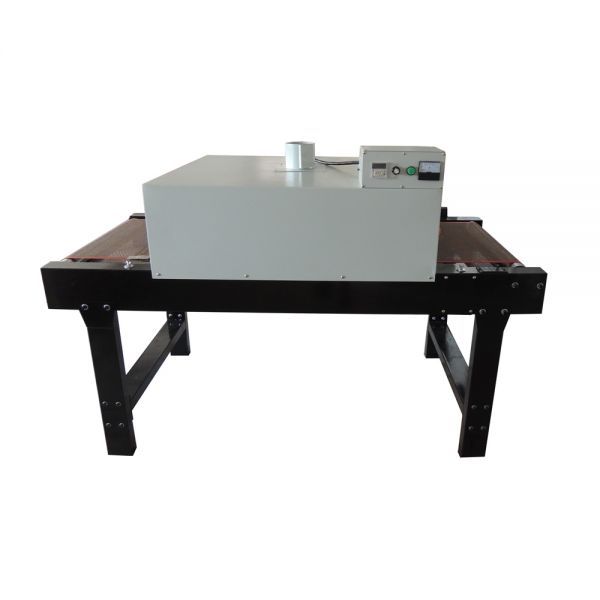

220V 7200W Conveyor Tunnel Dryer 8.2ft. Long x 25.6" Belt for Screen Printing
Parameters:
1. Power: 220V/7200W (single phase)
2. Lamp: IR heating lamp.
3. Machine length: 98.4" / 250cm
4. Heating area: 25.6" x 5.6 FT (170 x 65 cm) or customized
5. Constant temperature range: 0-482℉ / 0-250 ℃
6. Pavking: 1 plywood box
7. Gross weight: 550lb / 250kg
8. Packing dimension: 102.4" x 42.5" x 31.5" / 260 x 108 x 80 cm
9. 2 Year Heater Warranty! (except Lamp)
Note: This machine has no plug. you need to wire it by yourself.
Feature:
1. All machine size be customized. we only showing some simple photos.
2. Temperture and working speed are simply and easily adjustable.
3. Digital speed meter enables operator to adjust working speed accurately.
4. The heating element is silicon carbide tube. which has high efficiently light source to dry clothes exhaust fan eliminates the scrape outside.
5. It is suitable for drying various kinds of textile printing ink. such as plastic ink. silica gel printing ink. paste. and water based ink.
Application:
This tunnel dryer is suitable for heating printing ink on clothes. even heat-set ink.
Nice designed structure to make sure the best drying effect.
Furnished with fire-resistant Teflon belt. efficient IR heating tube and constant heat circulation.
Adopting intelligent digital display temperature control system. temperature error within 1 cent degree.
Steady belt transport. little noise and steeples speed change.
Owning a very short warm-up time to reach operational temperature.
Energy-saving and high efficiency
