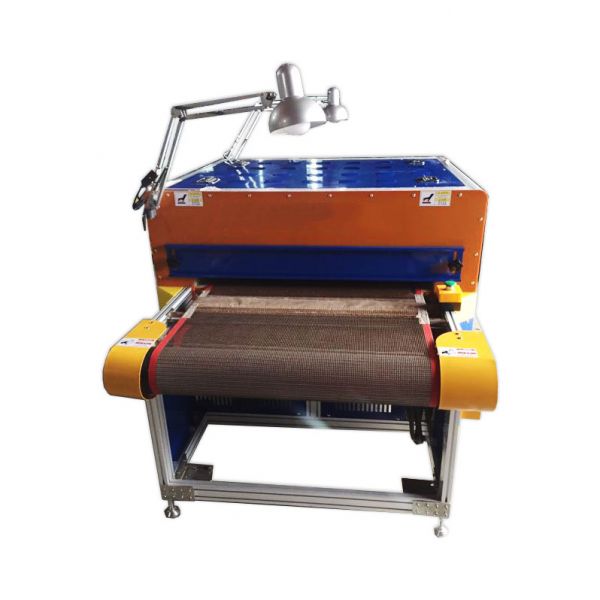

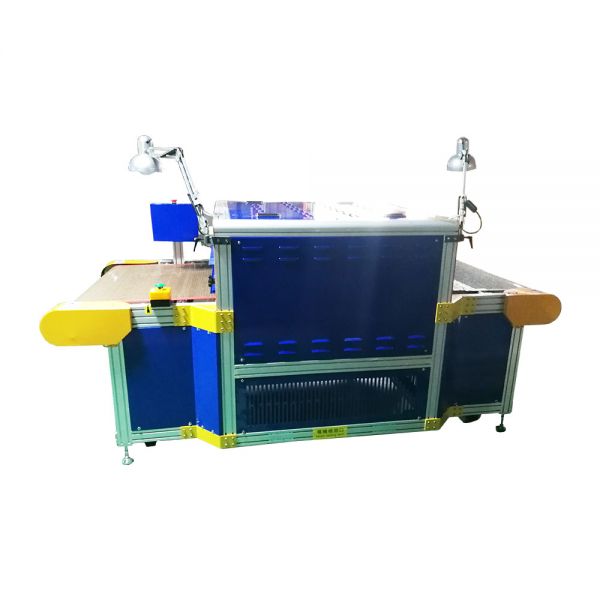

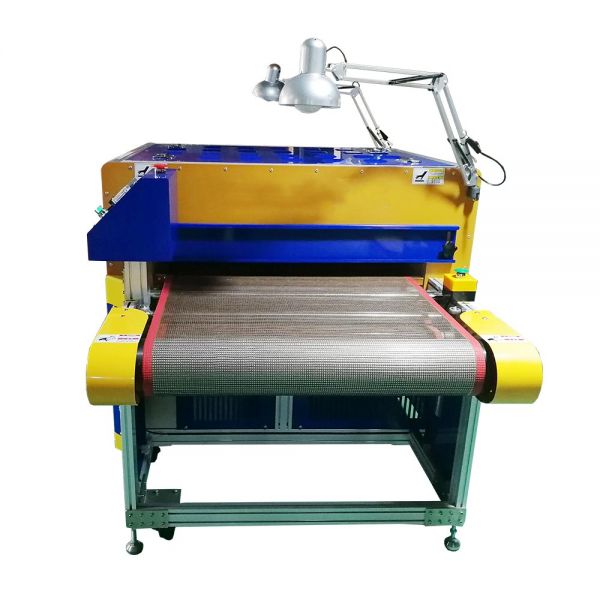

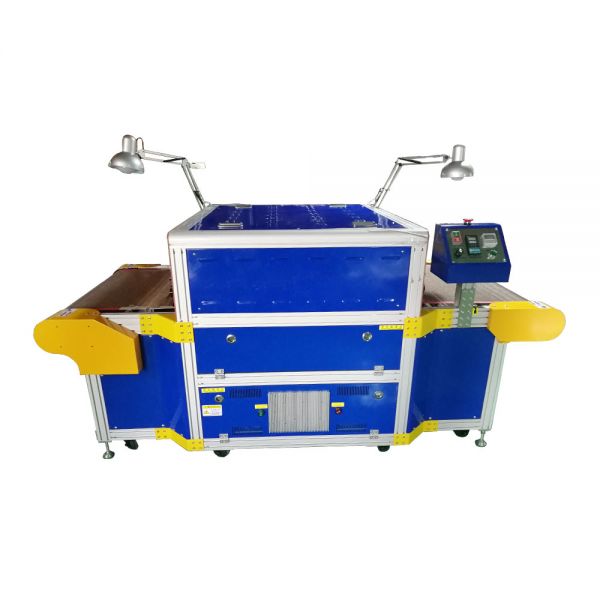

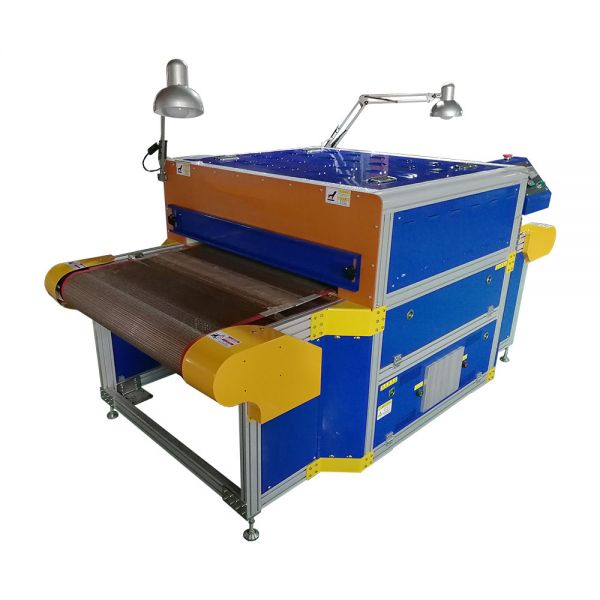

220V 8000W Conveyor Tunnel Dryer 7.2ft Long x 31.5" Wide Belt
This tunnel dryer, the overall design is reasonable, the heat preservation performance is strong,less heat loss, less power consumption.
Specification:
Total Length: 7.2' / 220cm
Total Width: 46.4" / 118cm
Belt width: 31.5" / 80cm
Belt to the ground height: 29" / 74cm
Enter /exit length: 23.6" / 60cm each
Oven chamber length: 39.37" / 100cm
Chamber height: 43.3" /110cm
Lamp: infrared carbon fiber lamp
Constant temperature range: 0-356℉ / 0-180 ℃
Heater wattage: 8 KW Ma
Power supply: 220V / 60Hz
2 Year Warranty on Heaters
Feature:
1.Internal circulation of hot air：the specific operation of the internal circulation device of hot air is as follows: the air in a group of every meter is sucked from the lower part of the mesh belt, and then blown from the upper part to the lamp tube, the hot air flows downward to form the hot air circulation, so as to evenly heat the box and prevent heat accumulation.
2.The tunnel furnace, the whole machine aluminum alloy frame structure, easy installation and relocation, the machine 1 set of fan system, 1 set of temperature control system, 1 set of independent speed regulating device network belt.
3.This structure is the latest high efficiency and energy saving device, which can ensure the rapid dehydration and solidification of the cloth.The machine can run efficiently for a long time.The normal power consumption of the whole machine is about 2-3kw.
4.Automatic tube fault detection function: there is a lamp tube damage alarm prompt, you can know which lamp is damaged.
Detail:
Package:
Export wooden box packing, whole machine packing, size after packing: 94.5" x 51" x 47" (240 x 130 x 120cm)
Gross Weight: 1023 lb (465 kg)
