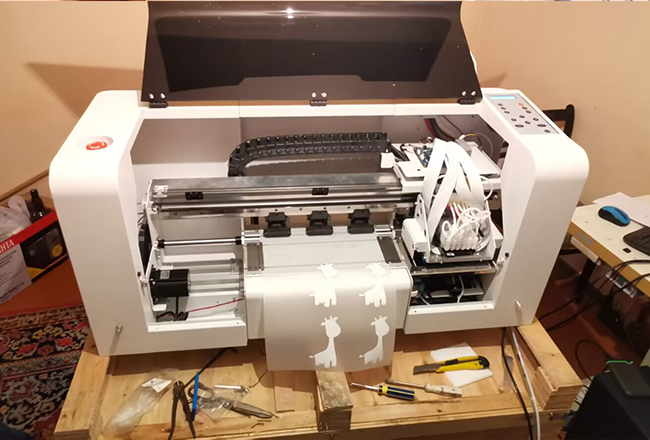

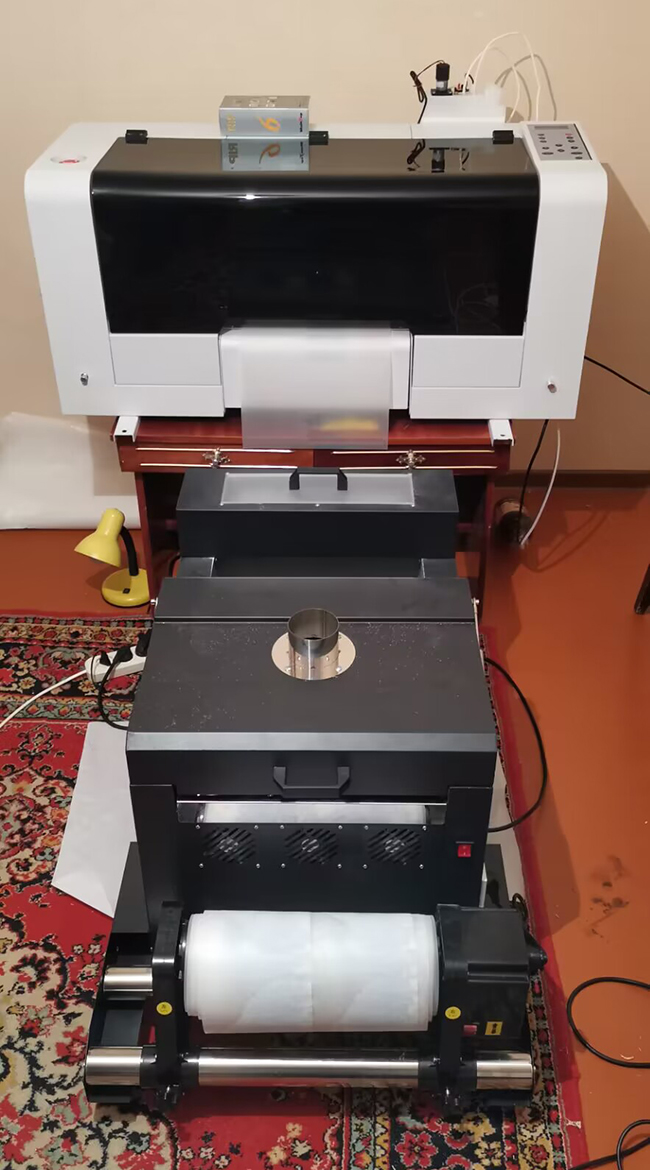

300B DTF Printer Powder Shaker and Dryer with 2 Epson XP600/I1600A Printheads
Features:
- Universal matching, easy to use, labor saving.
- Digital offset heat transfer, one-time forming.
- Suitable for industries such as digital printing.
- No engraving, no waste discharge, no engraving, no white edges, environmental protection.
Specifications:
| Printing width | ≤300mm |
| Print head | XP600 |
| Print head qty. (pc) | 2 |
| Suitable media | PET film |
| Heating and drying function | Front guide plate heating, solidified upper drying, and cold air cooling function |
| Printing speed | 6pass 5m²/h |
| 8pass 3m²/h | |
| Printing resolution | 720/1080/1440dpi |
| Print head cleaning | Automatic |
| Heating method | Front guide plate heating (30~65°C) |
| Platform suction adjustment | Yes |
| Printing interface | USB3.0 |
| Working environment | Temperature 15~30°C |
| Relative humidity | 40-60% |
| Software | Maintop |
| Operating system | XP/ Win7/ Win10 |
| Rewinding function | Automatic induction rewinding |
| Rated power | 250士5%W |
| Powder Shaker and Dryer | |
| Shake powder width | ≤380mm |
| Applicable medium | Nylon, chemical fiber, cotton, leather, swimsuit, diving suit, PVC, EVA, etc. |
| Fan control | Shake powder control, dusting control, direction and quantity control |
| Heating and drying function | Front guide plate heating, upper drying and curing, cold air cooling function |
| Rewinding function | Automatic induction winding |
| Rated voltage | 220V |
| Rated current | 13A |
| rated power | 2.3KW |
| Energy consumption | 1KW~2.3KW |
| Machine size | 350B dtf printer: 1070*650*950mm |
| Powder shaker and dryer: 950*620*550mm | |
| Whole set size: 1650*1070*950mm | |
| Packaging size | 350B dtf printer: 1140*610*615mm, 60kg |
| Powder shaker and dryer: 780*610*710mm, 52kg | |
Digital printing solution:

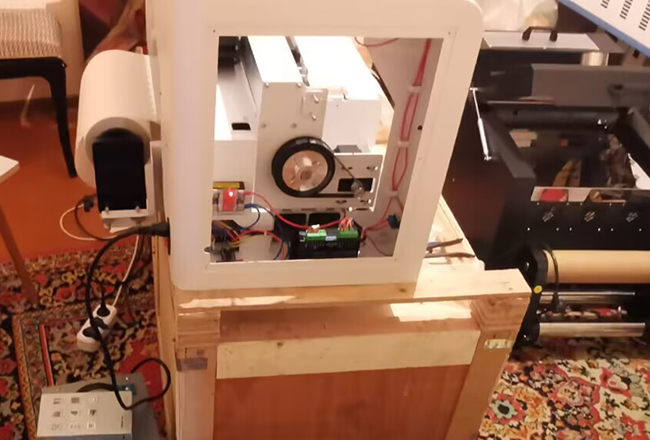

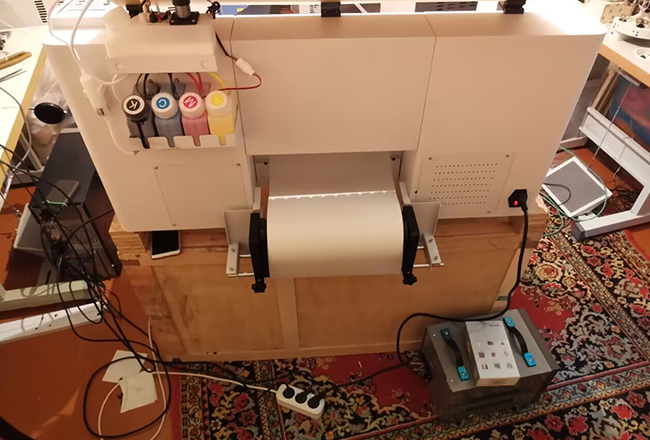

Details:
1. Powder feeding shaft: automatic powder feeding, evenly spreading powder.
2. Smoke outlet: It can be equipped with a smoke extractor, which is environmentally friendly and pollution-free.
3. Drying zone: Lengthen and widen the drying heating zone to evenly heat the screen.
4. Control panel: Chinese and English button panel, simplified operation, easy to understand.
5. Intelligent take-up device: The resistance of the take-up device can be adjusted, and the maximum load-bearing capacity of the thickened 5cm steel pipe is 70kg.
6. Powder shaking motor: Stepless speed regulation, shaking powder cleanly.
Powder Shaker Machine:
Applications:
