330B 4-Head Automatic Digital Roll to Roll Adhesive Label Die Cutting Machine

Item #: SIT-LCP-SH330B

10 disponibles

330B 4-Head Automatic Digital Roll to Roll Adhesive Label Die Cutting Machine

Name: 330B 4-Head Automatic Digital Roll to Roll Adhesive Label Die Cutting Machine
SKU: SIT-LCP-SH330B
Price: 173931.00 GTQ
Availability: InStock

Precio unitario

GTQ 173.931,00

/set

Descuentos por volumen

Cantidad

Descuento

Precio por unidad

GTQ 173.931,00

Costo total

GTQ 173.931,00

Cantidad

/set

Detalles del producto

Descripción

330B 4-Head Automatic Digital Roll to Roll Adhesive Label Die Cutting Machine

Features:

- The camera scans the QR code to enable automatic label cutting.

- The software automatically adds a QR code and mark point, and directly outputs a CDR cutting file.

- The optional function of collecting laminated waste bottom paper is available.

- The machine can be installed with an optional roll to sheeting cutting structure and an external cutting knife.

- The machine automatically stops when there is no paper.

Specification:

Material support width	≤350 mm
Die cutting method	Imported alloy blade
Maximum cut label width	330 mm
Die cutting precision	0.05 mm
Cutting tag length range	10–900 mm
Document format	PLT; PDF
Die cutting speed	15 m/min (depending on die track)
Machine size	120012001450 mm
Number of cutting heads	4
Machine weight	1000kg
Number of split knives	Standard: 5 (optional based on demand)
Power	1500W

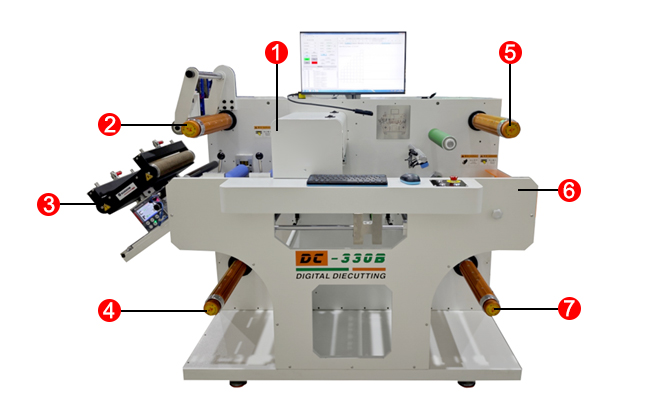

Details:

1, Diaital die-ocutting station

2, Film-coated air shaft

3, Utrasonic rectification

4, Unloading Air Shaft

5, Waste shaft

6, Knife split statior

7, Winding Ari Expansion Shaft

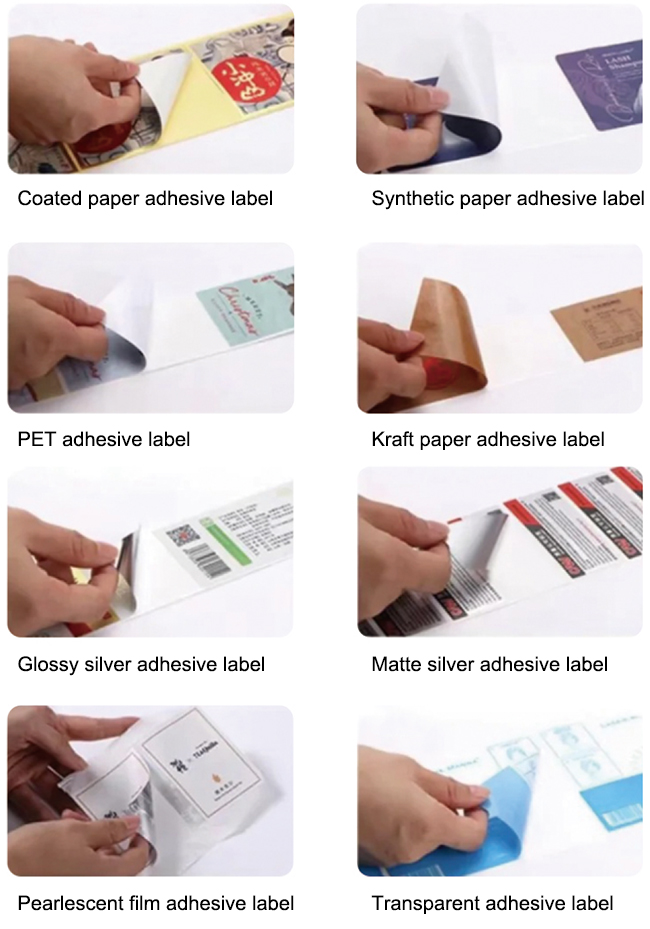

Applicable material:
