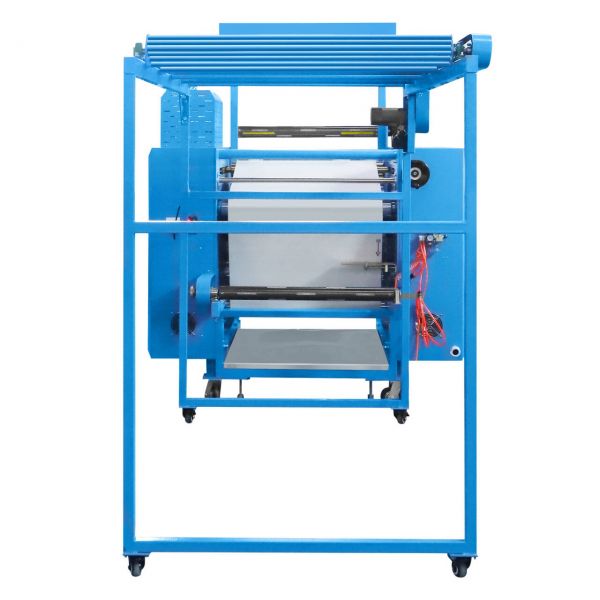

420*600mm/420*900mm/420*1200mm Roller Type Webbing Double-sided Heat Transfer Machine
Description:
The product can be applied to one side or double-sided printing fabric, such as: ribbon ,lace,mobile phone lanyard . With stable heating temperature ,the effects of finished products havegood and clear printings by its accurate positioning according the different requirements,what s more, it can transfer several fabric at thesame time in order to improve the productionefficiency.
Sprcification:
| Diameter | Width | Power | Voltage | Temperture | Noise | Speed | Package size | Installation size | Weight |
| 420mm | 600mm | 15kw | 220v | 0-400°C | 30dB | 80-160m/h | 1500x1180x1650mm | 1480x4280x1850mm | 800kg |
| 420mm | 900mm | 15kw | 220v | 0-400°C | 30dB | 80-160m/h | 1750x1180x1650mm | 1780x4280x1850mm | 900kg |
| 420mm | 1200mm | 15kw | 220v | 0-400°C | 30dB | 80-160m/h | 1950x1180x1650mm | 2080x4280x1850mm | 1200kg |
Equipment advantage:
1.Positioning work table
Positioning work table,easy to print for the lace products of the single side/double-sided with more accurate alignment.
2.Seamless steel pipe drum
Rollers has precision processing for its both inside and outside of cylindrical , with the help of precisiongrinding of outside and stable roller heating temperature , the printings has no color difference.
3.High-quality heating tube
High-quality heating tube and heat transfer oil, because it directly heat oil, the temperature canrise to 200 degree in 45minutes or so.
4.Pneumatic pressurization
Pneumatic pressure (pressure adjustable), the front silicone shaft pressure can give abetter transfer effect.
5.Belt device
Transfer printed ribbon go through the belt device, which makes the ribbon easy toroll up without knotting together.
Application:
Applicable to small pieces, ribbon, elastic band, shoelaces, mobile phone lanyard, pet belt, zipper and so on.
