Impulsa tu creatividad y tu producción!
Precio unitario
GTQ 7119,22
/sq.m
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1-5
0%
GTQ 7119,22
6+
0%
GTQ 7119,22
Costo total
GTQ 42.715,32
Cantidad
/sq.m
6

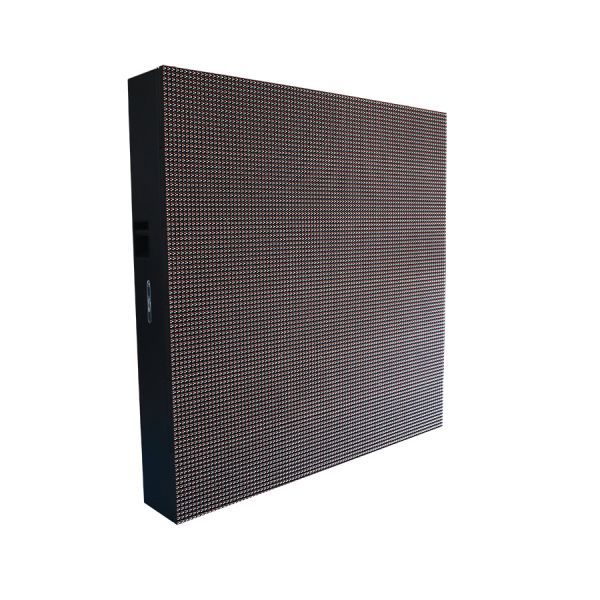

Outdoor standardized LED product
Stable and reliable
> Magnalium alloy material, super-light, super-thin
> Standardized box: 960x960, standardized module: 320x160
> Standardized, serialized design; save warehousing cost and reduce service cost
> Proprietary redundant design for module
> High protection grade, IP65 on front and IP54 on rear
Specification
| Parameters | T800 |
| Pixel Pitch（ mm） | 8.0 mm |
| Pixel Conguration | SMD 3535 |
|
Pixel Matrix per Panel |
120 x 120 dots |
| Pixel Density | 15,625/sqm |
|
Panel Dimension(W×H×D) |
960 x 960 x 132 mm ( 37.8"×37.8"×5.2") |
| Panel Material | Die-casting Aluminum |
|
Panel Weight（kg/panel） |
30 kg/panel (66.1 lb/panel) |
| Color Depth（Bit） | 14 bit |
| Refresh Rate（Hz） | 960Hz |
|
Driver Method/scan |
Scan 1/5 |
| Brightness（nit/m²） / ความสว่าง (nit / m²) | 6000 nit/m² |
|
Horizontal Viewing Angle（ °） |
140 ° |
|
Vertical Viewing Angle（ °） |
100 ° |
|
AC Power Input（ V） |
AC110V~ 220V ±10% |
|
AC Power Frequency（ Hz） |
50 ~ 60 Hz |
|
Max. Power（ W/m²） |
850 W/m² |
|
Avg. Power（ W/m²） |
380 W/m² |
|
Storage Temperature |
-40℃ ~ 60℃ |
|
Operating Temperature |
-20℃ ~ 40℃ |
|
Storage/Operating Humidity |
10% ~ 90%RH |
|
IP Rating（IP） |
IP65 / IP54 |
|
Lifetime Typical Value |
100,000 Hrs |
|
Installation Type |
Fix |
|
Maintenance Method |
Rear Serviceable |
| Certications | / |
