Fully Automatic Suction Feeding Creasing Machine
Feature:
Suction feeding technology, which makes the paper fast and smooth to transport without wrinkles.
There are two functions: indentation and dashed line.
The indentation can be adjusted for skewness, and there is an extension plate.
Indentation blade heat treatment width 0.05 (more beautiful indentation).
Rice noodle knife imported from Japan (strong penetration).
Core Components Gear, Engine, 1 Year Warranty.
Specification:
| Model |
SM371Y |
SM373Y |
| Control |
Buttons |
Touch screen |
| Max paper size |
335x655mm(extendable) |
| Min paper size |
210x297mm |
| Indentation/dotted line depth adjustment |
Infinitely adjustable |
|
| Indentation skew adjustmen |
Simple |
| Operating speed |
3850sheets/hour |
5000sheets/hour |
| Max number of creasing tracks |
32 group |
32 group |
| Thickness of creasing paper |
100-350g |
70-350g |
| Thickness of dotted line paper |
128-200g |
70-300g |
| Maximum height of paper |
110mm |
110mm |
| Total power |
195W |
195W |
SM-371Y is controlled by buttons, and can reach 3850 sheets per hour.

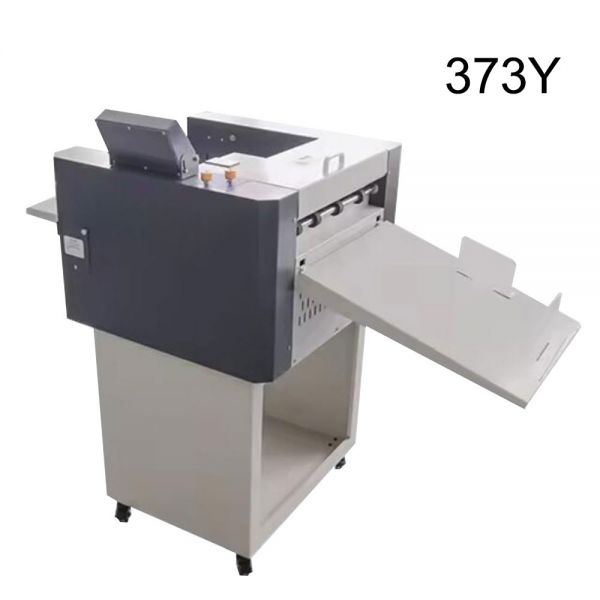

SM-373Y is controlled by touch screen, and can reach 5000 sheets per hour.





Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Other, Advertising Company.
