High Speed Industrial DigitalI Textile Printer with 8/16 Kyocera Printheads
8-head
Precio unitario
GTQ 1.184.702,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
GTQ 1.184.702,00
Opciones
Por Favor Eliga el Tipo Por Favor Eliga el Tipo
Costo total
GTQ 1.184.702,00
Cantidad
/set
1

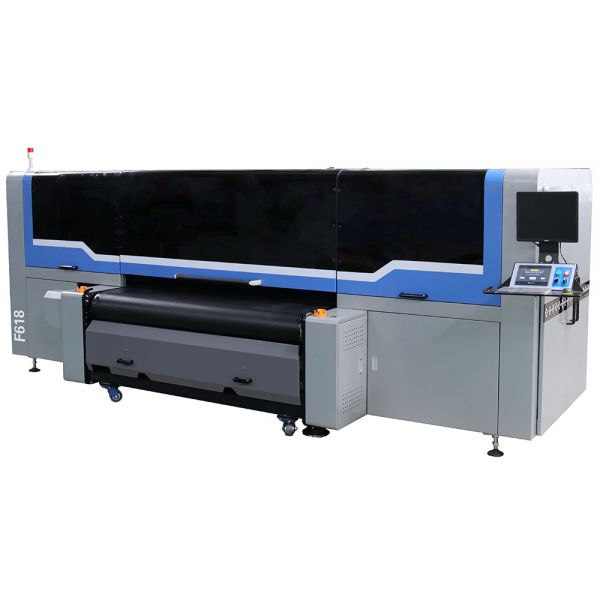

High Speed Industrial DigitalI Textile Printer with 8/16 Kyocera Printheads
Description of Machine:
Conveyor belt
- Servo motor: Yaskawa, Japan.
- Belt: Habasit, Switzerland.
Tolley motor: Hiwin,Taiwan.
Printing beam and the card control system:1 set, from NKT.
Ink system: Main parts brand and model.
- Ink pump: KNF.
- Vacuum pump: Thomas.80Kpa.
- Diaphragm pump: Thomas, DC24V.
- Electromagnetic valve: SMC.
- Pressure reducing valve: SMC.
- Check valve: Cobetter, PVC.
- Filter: Cobetter, NPT342 (2um).2.6
Control System:1 set
Main electronic parts:
- PLC: Omron.
- Contactor: Omron.
- Breaker: Omron.
- Switch button: Schneider.
Output: 400 m²/h / 4 rows / 2 pass printing.
Specification:
| Printhead | Kyocera KJ4B, two-color print head (made in Japan) |
| Number of printheads | 8-16 pcs (4 rows, each row has 4 pcs print heads) |
| Available Printing Width | 1800 mm |
| Resolution | 600 DPI |
| Printing Model | Binary and 4-level grey scale |
| Number of Colors | 8 colors |
| RIP software | Neostampa |
| Overall Dimension | 5400*2680*1900mm(L*W*H) |
| Power supply | 380V110%/50HZ |
| Air supply | >0.5MPa |
| lnstalled power | 62KW (Main machine 30KW+Dryer 32KW) |
| Weight | 4000KG |
Details:
Applications:
