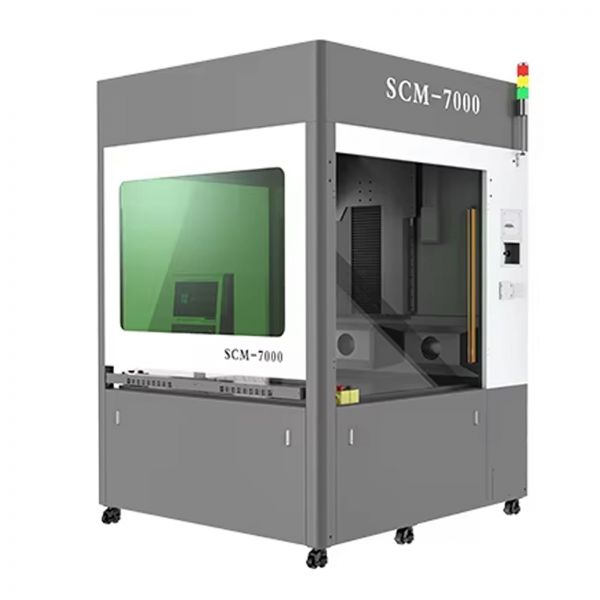

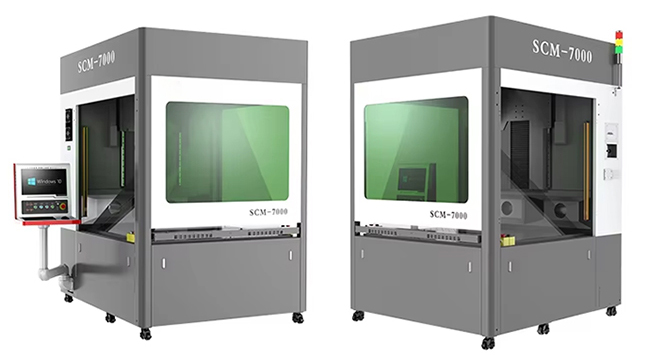

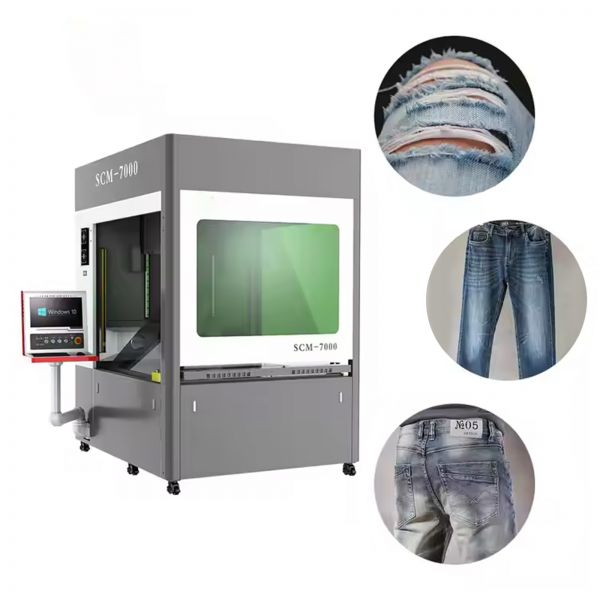

Laser Marking Machine for Jeans with High-Speed Galvo Scanner

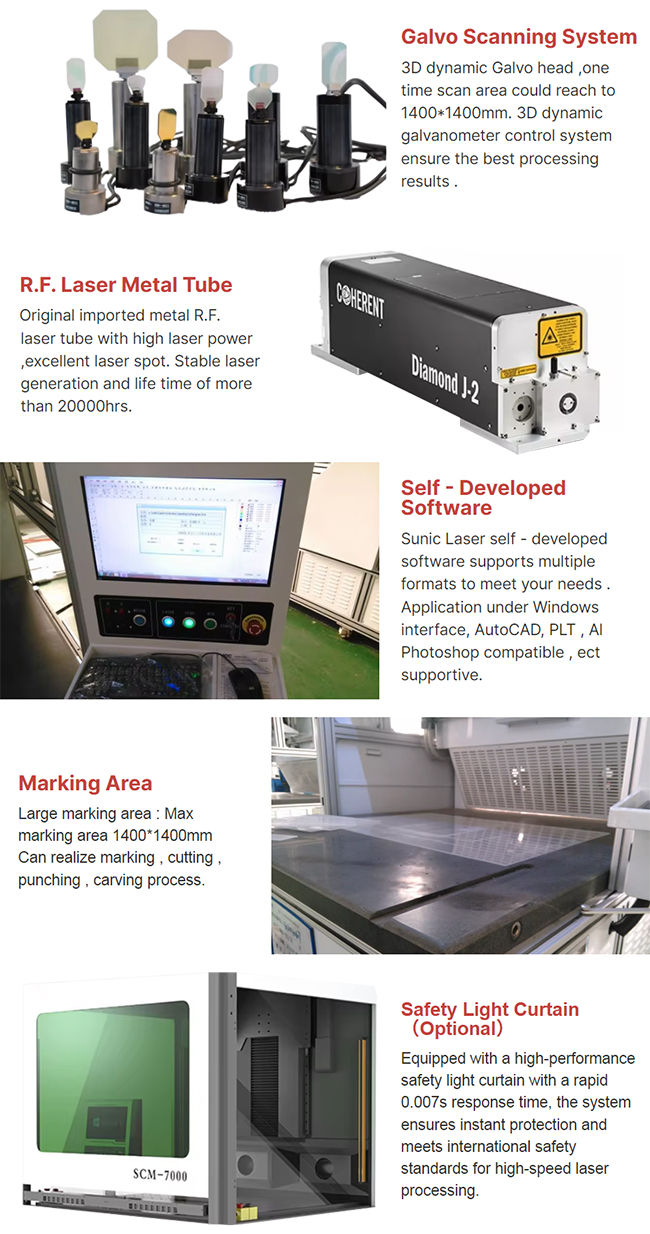

Features
1.Environmental Solution: Replacing traditional washing techniques with laser technology addresses the environmental challenges associated with conventional washing processes.
2.Superior Speed, Power, and Efficiency: Operates at ultra-high speeds, with large power output and exceptional efficiency.
3.Adjustable Laser Head: Electrically adjustable for height, with adaptable processing dimensions to meet precise and large-scale manufacturing needs.
4.Enhanced Workspace: Upgraded table with improved dust absorption and auxiliary air blowing, complemented by smoke purifiers for superior environmental performance.
5.High-Definition Projector: Equipped with a high-definition projector for accurate visualization and optional cross-red light positioning system.
6.Safety Features: Optional safety light grid protection ensures operational safety.
7.Versatile Laser Options: Features original imported lasers with choices ranging from 350W to 700W to suit various power requirements.
8.User-Friendly Adjustments: Digital display for adjusting laser head focal length, facilitating convenient operation.
9.Advanced Software: Self-developed software enables multi-level engraving and natural gradient effects for refined outcomes.
10.Supports Bitmap and Vector Engraving: Effortlessly completes complex tasks like intricate engraving with a single click,maximizing efficiency.
11.Safety, Environmental Friendliness, Energy Efficiency, and Emission Reduction: Ensures safety, environmental protection,energy conservation, and emission reduction benefits.
Specification:
| Model | SCM7000 |
| Max working Area | 1400x1400mm |
| Laser power | 350W/400W/700W |
| Power Consumption | ≤ 9KW,15KW |
| Life Span | Over 20000 Hours |
| Marking Speed | ≤15000mm/s |
| Worktable | MDF/Strip/Honeycomb Worktable |
| Laser Source | US Coherent R.F. Metal Laser Source |
| Laser Wavelength | 10.64μm |
| Laser Frequency | 1kHz~100kHz |
| Focusing method | 3D Dynamic Focusing System |
| Repetition Precision | 0.01mm |
| System Support | Windows 10 |
| Output Compatibility | Auto CAD, Photoshop, CorelDRAW etc |
| File Formats | PLT, DXP, BMP, JPG, AI etc |
| Software Character | Integrated Dotting, Drawing, Marking, Scribing & Cutting |
| Power Supply | AC220V 50Hz/60HZ |
| Cooling Way | Circulation of Water Cooling |
