ML750/930/1100/1300/1500/1800/2500 Creasing and Die Cutting Machine
Usage:
Die Cutting Machine or Platen Punching & Creasing Press particularly designed for Die Cutting, Scoring and Creasing Work
on PAPER, LINOLEUM, CARD-BOARD, CORRUGATED BOARD, FIREBOARD, CORK, LEATHER, PLASTIC AND PVC MATERIALS etc. Most Handsome and compact patronized model requires Minimum Floor-Space. Minimum "Make-Ready" Time and provides sufficient hourly production.
Features:
Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing. Flywheel is with big moment of force and large pressure. High strength due to one piece casting by using top-ranking material for machine body. Single plate electromagnetic clutch is sensitive and reliable
With functions of single, continuous and opening dwell operation, dwell range is adjustable. Operating position is reasonably arranged, moving-bed can be opened to its optimum. Safety system is reliable. Can equip inner and outer movable frame.
Normal standard:
Stainless steel plate; Copper sleeve; Manual central lubrication device (manual oil pump)
CE standard:
CE safe guard; Infrared ray device; Schneider or Siemens electric; Electric automatic oil pump;
Optional:
NTN/NSK bearing; ABB motor;
Specifications:
| Model |

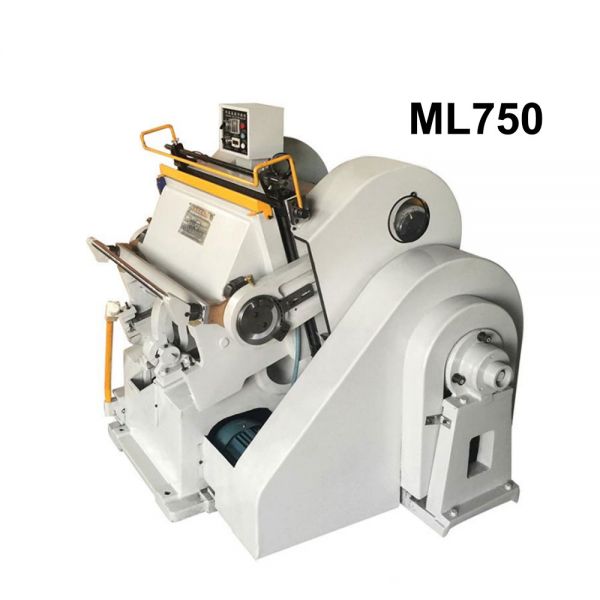

ML750 |
ML930 |

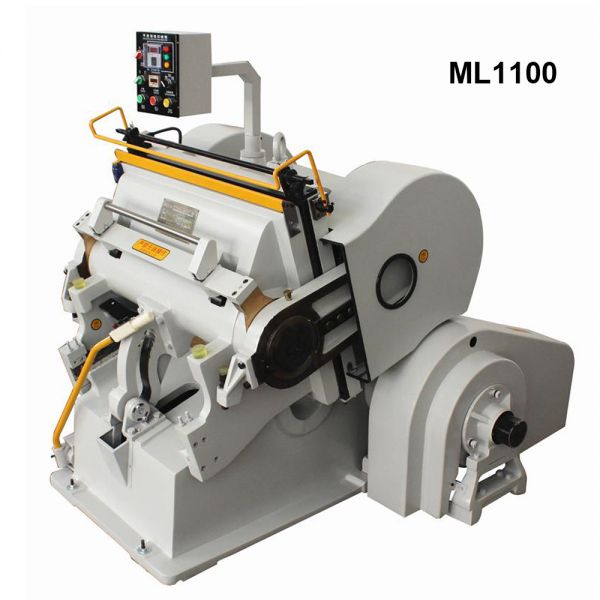

ML1100 |

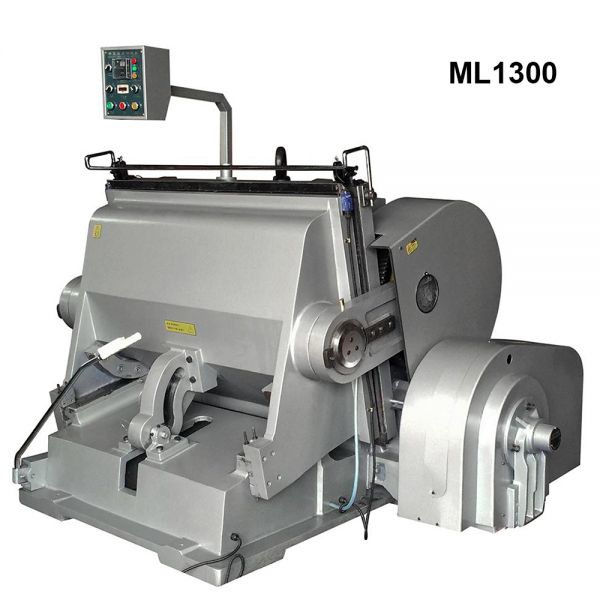

ML1300 |
| Platen size |
750x520mm |
930x670mm |
1100x800mm |
1300x920mm |
| Speed |
25±2times/min |
21±2times/min |
21±2times/min |
15±2times/min |
| Max cutting |
≤15m |
≤25m |
≤30m |
≤40m |
| Motor power |
2.2kw 380V 50Hz |
4kw 380V 50Hz |
4kw-6H 380V 50Hz |
5.5kw-6H 380V 50Hz |
| N.Weight |
1800kg |
2800kg |
3800kg |
5300kg |
| G.Weight |
1900kg |
3000kg |
3900kg |
5600kg |
| Dimension |
1520x1340x1550mm |
1600x1820x1600mm |
1950x2200x1700mm |
2150x2200x1800mm |
| Model |

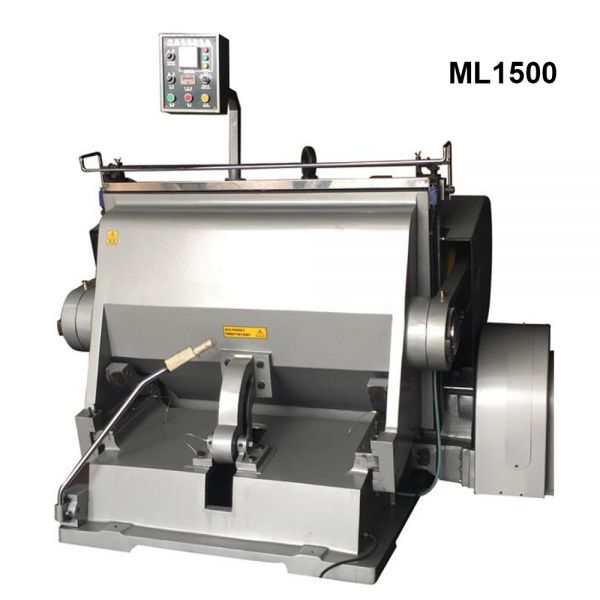

ML1500 |

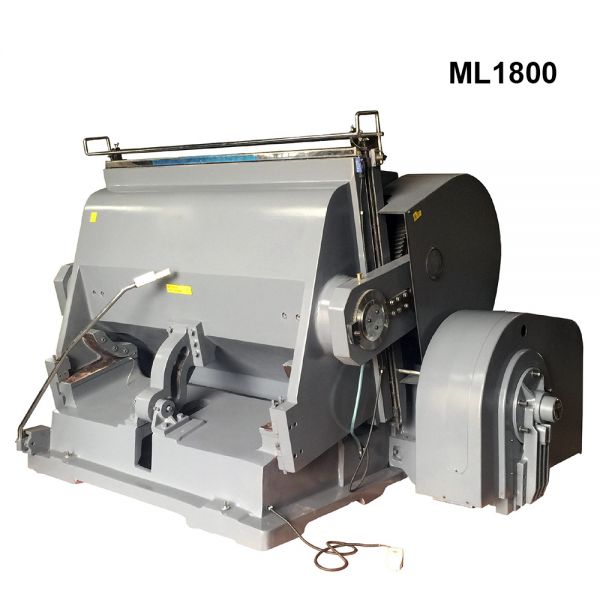

ML1800 |
ML2500 |
| Platen size |
1500x1050mm |
1800x1300mm |
2500x1400mm |
| Speed |
14±2times/min |
13±2times/min |
11±2times/min |
| Max cutting |
≤45m |
≤60m |
≤80m |
| Motor power |
7.5kw-6H 380V 50Hz |
15kw 380V 50Hz |
22kw 380V 50Hz |
| N.Weight |
7200kg |
12500kg |
18000kg |
| G.Weight |
7500kg |
13000kg |
18500kg |
| Dimension |
2350x2200x2000mm |
3000x2200x2250mm |
3650x2200x2300mm |

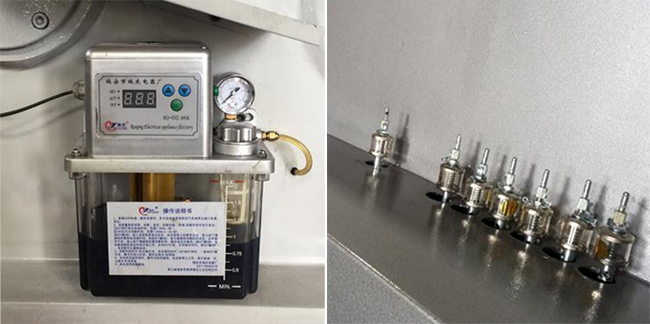

Electric automatic oil pump

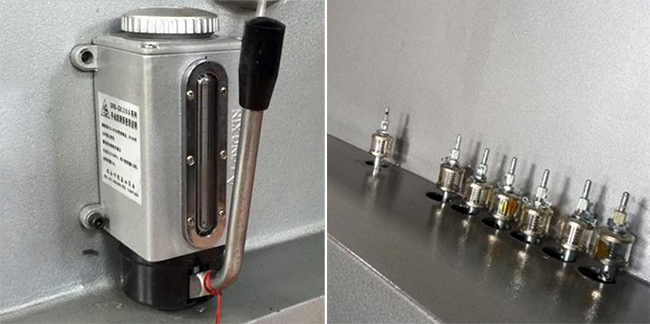

Manual central lubrication device

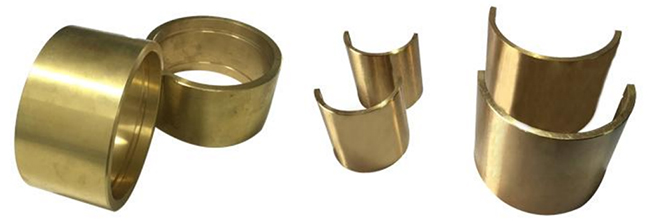

Cooper sleeve:

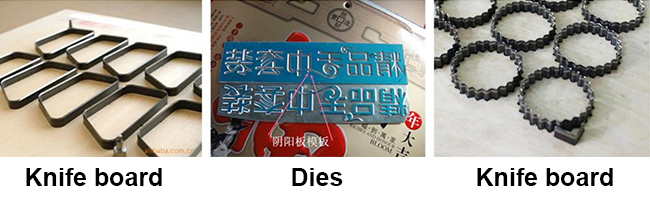

Knife Board and Dies:
Sample:

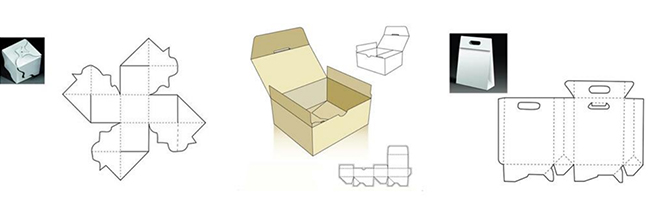

Vector diagram
Paper card, paperboard, leather, PVC, PP, PET…
Package:
