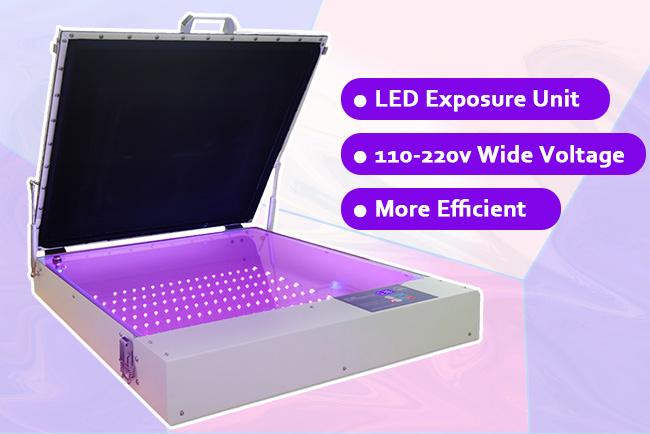

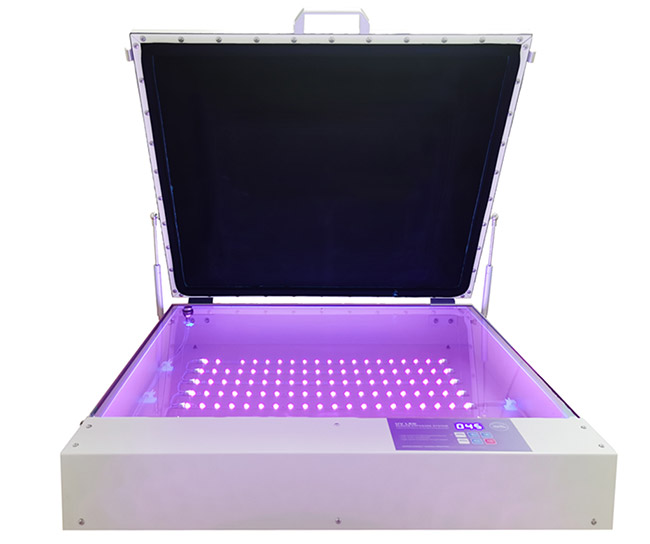

Tabletop Precise 50x60cm 80W Vacuum LED UV Exposure Unit
Precio unitario
GTQ 5044,48
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1+
0%
GTQ 5044,48
Costo total
GTQ 5044,48
Cantidad
/set
1
Impulsa tu creatividad y tu producción!
Precio unitario
GTQ 5044,48
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1+
0%
GTQ 5044,48
Costo total
GTQ 5044,48
Cantidad
/set
1
Only Free Shipping to Mexico
Parameter:

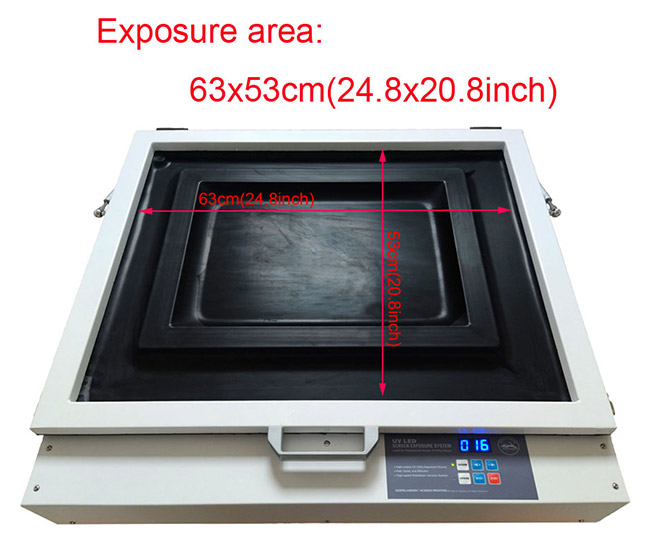

1.Max.exposing area/Max screen size: 50x60cm
2.Voltage (single phase ): 110V ~ 220V
3.Vacuum Degree:80 kpa
4.Time control: 0-999s
5.Power of lamps: 80W (8 x 10w UV LED-line)
6.wavelength: 395NM
7.Angle of diffusion: 120
8.Distance between strips and glass:3.5"/90mm
Application:
The LED exposure unit is used in the filed of plate-making such as pad plate, screen plate,
hot stamper plate, resin plate. when you put the film onto the plate into vacuum UV LED exposure machine, start it, the emulsion on the plate will appear a unseen imagine. this is important process on all plate-making technology.
Feature:
1.Adopting high efficiency UV LED light source,which save 50% electricity than ordinary model.
2.Vacuum model, use high quality rubber cloth,longer lifetime.
3.Built-in vacuum pump,very fast to vacuum.

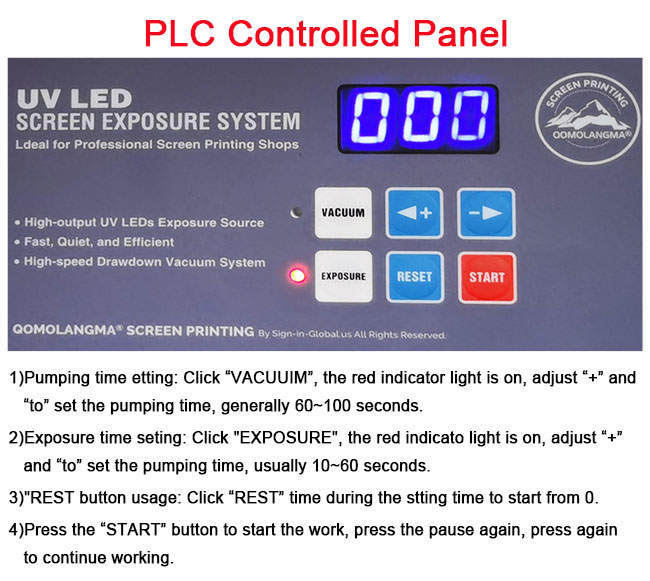

4.PLC controlled panel, very easy to operate.
5.Automatic memory function for working as original seting next time
6.Perfect exposure effect because of LED light.
7. Fast exposure time,about 40-70 seconds.
8.Energy saving and environment friendly.
9.Stable exposure quality,more lifetime.
10.Durable and beautiful with steel coat.

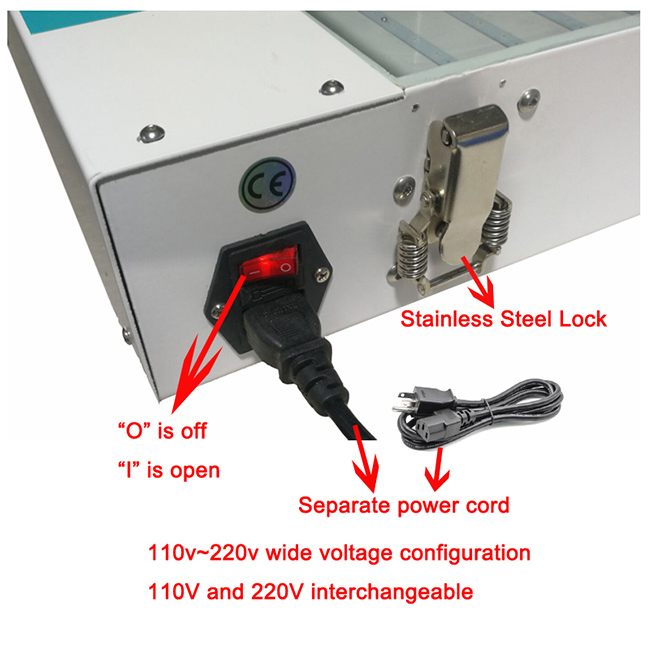

11.Outside connecting power plug, safety and convenience.
12.Easy to transport,LED light is not fragile in delivery.

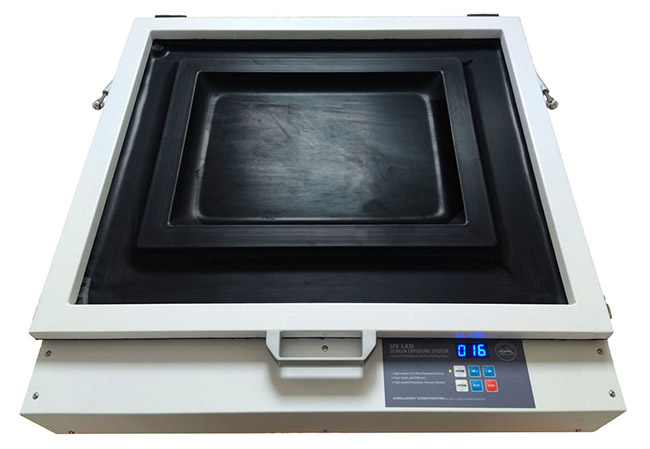

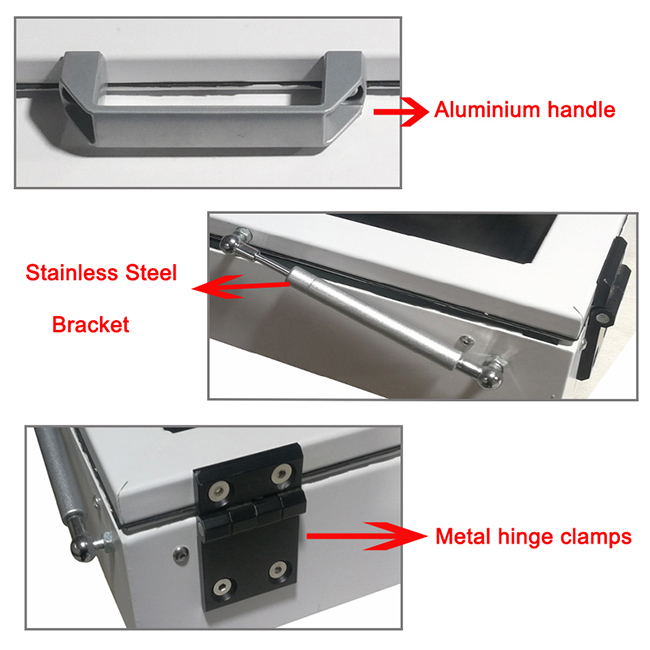

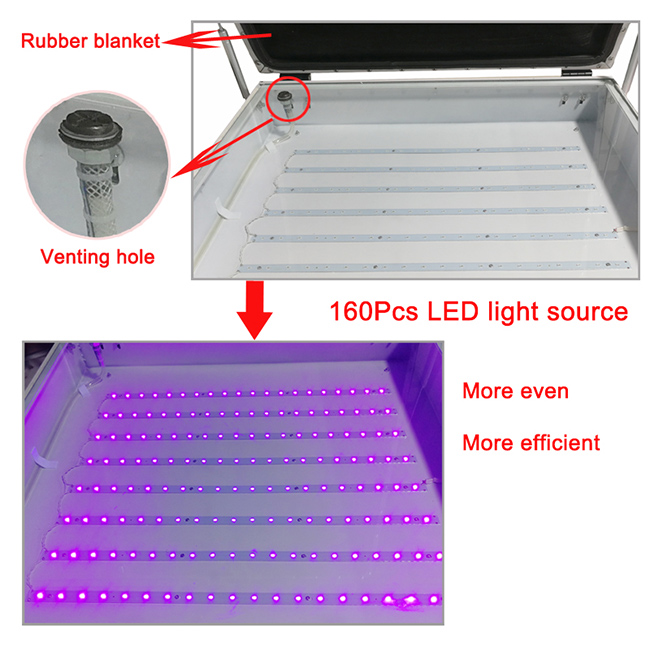

Details:
Customer's Case:

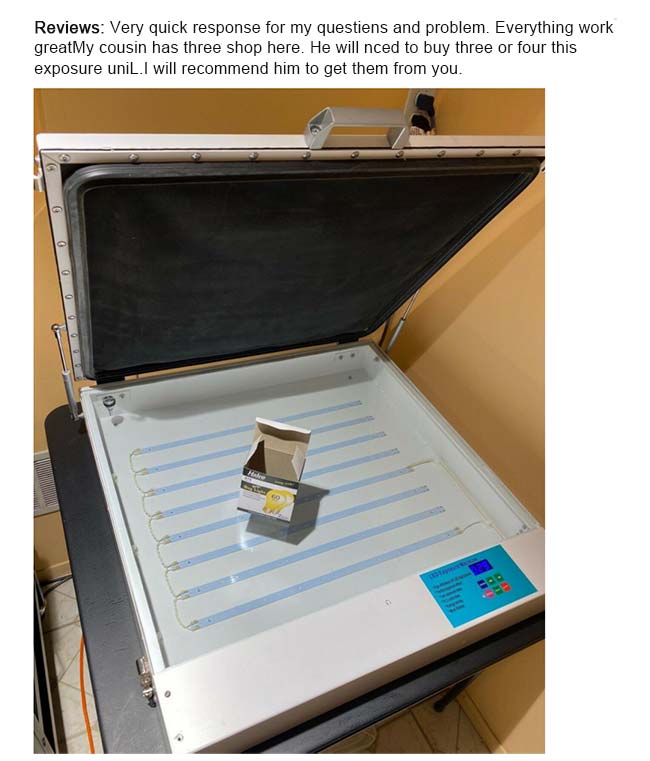

Case1:
Case2:

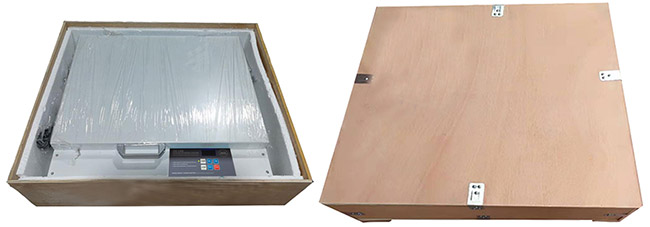

Package:
Packing Size: 33 x 32 x 9 inch /84 x 82 x 23 cm
Gross Weight: 79.2 lb /36 kg
Screen printing solution:
