XY1600 High-Precision Automatic XY Cutter Roll to Cutter Digital XY Trimmer Paper Cutting Machine
Цена за единицу
GTQ 74 145,00
/ед.
Оптовые скидки
Количество
Скидка
Цена за единицу
1
0%
GTQ 74 145,00
Итого
GTQ 74 145,00
Количество
/ед.
1

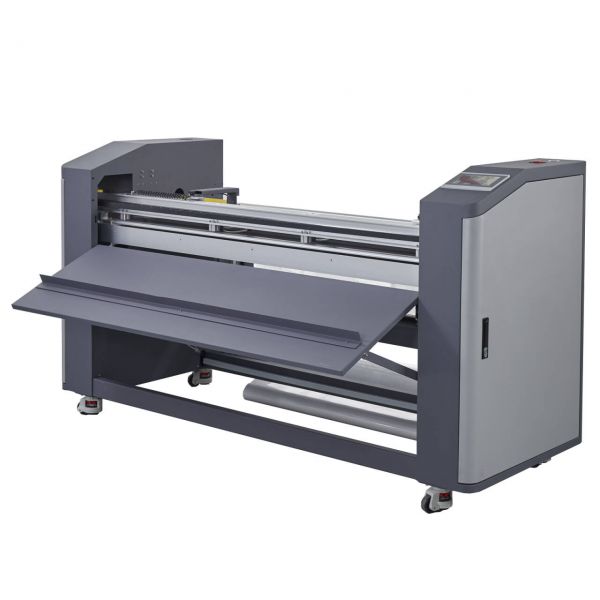

XY1600 High-Precision Automatic XY Cutter Roll to Cutter Digital XY Trimmer Paper Cutting Machine
Features:
Smart touch screen
Touch screen, easy to operate.

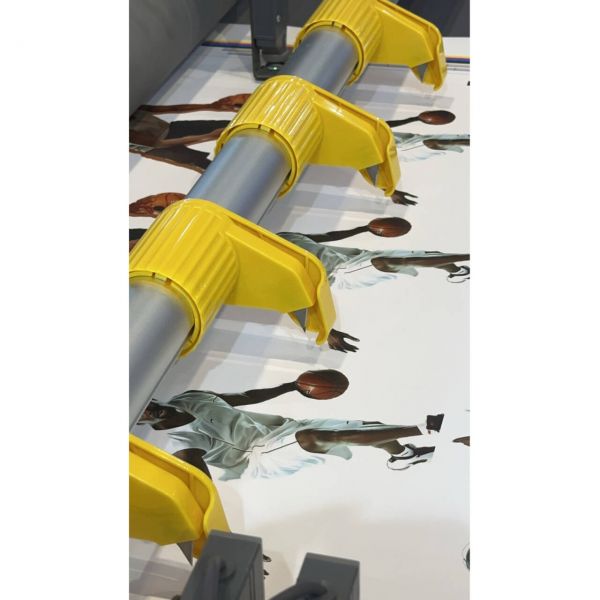

Double roller feeding
The use of roller feeding mode, suitable for more materials, make the material more flat, prevent.
Servo motor
High accuracy, strong power, high efficiency, to ensure the accuracy of cutting.
Standard with more vertical knife cutting
Aluminum alloy tool holder solid and durable.
High-precision color marker sensor
Horizontal and vertical bidirectional correction identification, timely correction of the picture, correction and cutting.
The air expansion shaft
The air expansion shaft is more convenient, the material is not easy to deciate, and the cutting is more accurate.
Self grinding transverse hob
Tungsten steel blade, sharp and durable.
Specificatuon:
| Voltage | 220V |
| Power | 550W |
| Frequency | 50Hz-60Hz |
| Atmospheric pressure | 0.5Mpa |
| Maximum transfer speed | 30m/min |
| Maximum cutting cross-section | 1600mm |
| Minimum cutting width | 20mm |
| Weight | 460kg |
| Carton size | 2300x1170x1400mm |
Photos:
Scop of appclication:
Appclication:
Certification:
