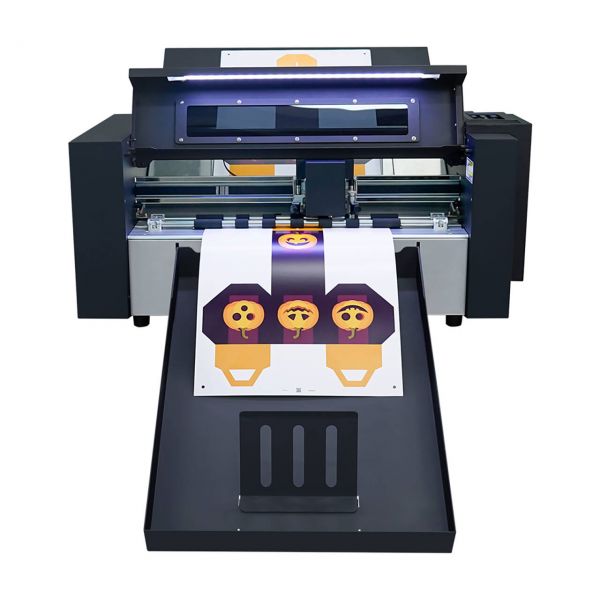

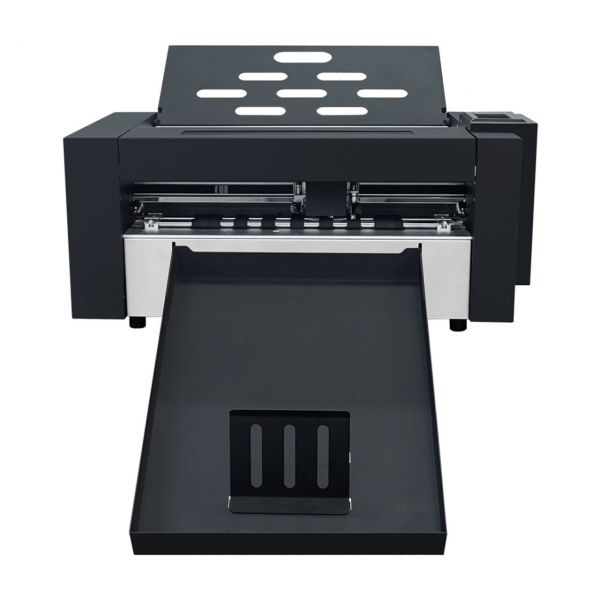

ZD350U Dual Head Servo Motor Cutting Machine Suitable for all kinds of Self-adhesive Stickers Copperplate Paper Box and Paper Cards
Цена за единицу
GTQ 28 519,00
/set
Оптовые скидки
Количество
Скидка
Цена за единицу
1
0%
GTQ 28 519,00
Итого
GTQ 28 519,00
Количество
/set
1
ZD350U Dual Head Servo Motor Cutting Machine Suitable for all kinds of self-adhesive stickers Copperplate paper box and paper cards
Features:
1.One key calibration machine offset value, save time proofreading machine, save paper.
2.Voice coil cutting system ensures stable and fast cutting, greatly improving productivity.
3.Quickly detect reference mark positioning and cutting patterns with the camera.
4.Automatic feeding system, save time and labor.
5.The two cutter heads work simultaneously, while indentation and cutting.
Specification:
| Model | ZD350U |
| Maximum media width | 360mm |
| Max cutting width | 350mm |
| Auto feeding quantity | 150PCS |
| Motor | Servo |
| Positioning mode | CCD camera |
| Interface | U-disk/USB/WIF/LAN |
| Power | <100W |
| Maximum standby speed | 1600mm/s |
| Maximum cut speed | 1600mm/s |
| Max cutting thickness | 350g |
| Force | 2000g |
| Accuracy | ±0.1mm |
| Repeat &postioning accuracy | ±0.082mm |
| Power supply (V/A) | 220V 50A |
| Working environment | 5°C-35°C |
| Cuttable material | All kinds of self-adhesive labels, printing graphics, etc. |
| OS/Software | Windows XP 7/8/10/11 CorelDRAW/AI Plug-in Camera Cut Contour edge patrol software |
| Product size | 770*455*350 (mm) |
| Packing size | 870*550*570 (mm) |
Application:
